A performance power supply from R&S Essentials
The R&S HMP power supplies are primarily designed for industrial use. With up to four output channels and up to 10 A output current per channel, these rugged instruments are ideal for a wide variety of applications. They offer high efficiency with low residual ripple and many protection functions.
The R&S HMP power supply family consists of four models. The R&S HMP2020 two-channel power supply and the R&S HMP2030 three-channel power supply deliver up to 188 W total output power, the three-channel R&S HMP4030 and the four-channel R&S HMP4040 offer a maximum output power of 384 W. The total load can be distributed as desired over the separate channels. Depending on the model, up to 80 W or 160 W of channel power is available – in any voltage/current distribution.
This Bundle includes:

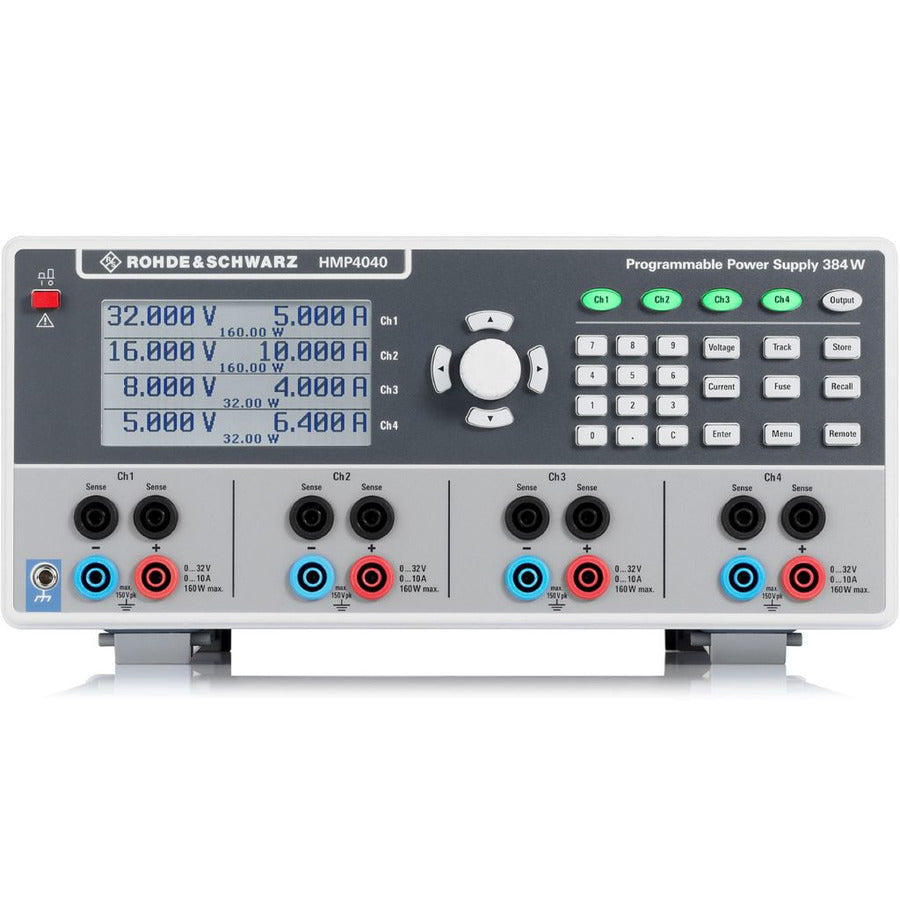

R&S HMP4040 Power Supply
R&S HO732 USB/LAN Dual Interface
4 channels with max. 384 W total output power
Maximum output current per channel: 10 A
Maximum output power per channel: 160 W
Maximum output voltage of 32 V per channel; higher voltages possible in serial operation
USB/LAN Dual Interface
Model overview |
HMP2020 |
HMP2030 |
HMP4030 |
HMP4040 |
|---|---|---|---|---|
No. of output channels |
2 |
3 |
3 |
4 |
Max. output current/channel |
CH 1: 10 A CH 2: 5 A |
5 A |
10 A |
10 A |
Max. output power/channel |
CH 1: 160 W CH 2: 80 W |
80 W |
160 W |
160 W |
Total output power |
max. 188 W |
max. 188 W |
max. 384 W |
max. 384 W |
Output voltage/channel |
0 V to 32 V |
0 V to 32 V |
0 V to 32 V |
0 V to 32 V |
All channels galvanically isolated and floating
All channels have the same voltage range
All channels have overload and short-circuit protection
Parallel and serial operation
Constant voltage and constant current modes
Tracking and link functions
Protection functions to safeguard instrument and DUT
Modern instrument concept: small, compact and quiet
Intuitive use
Color coding of operating states
EasyArb function for all channels
Save and recall instrument settings
Tailored for use in labs and system racks
Remote sensing for more stringent accuracy requirements

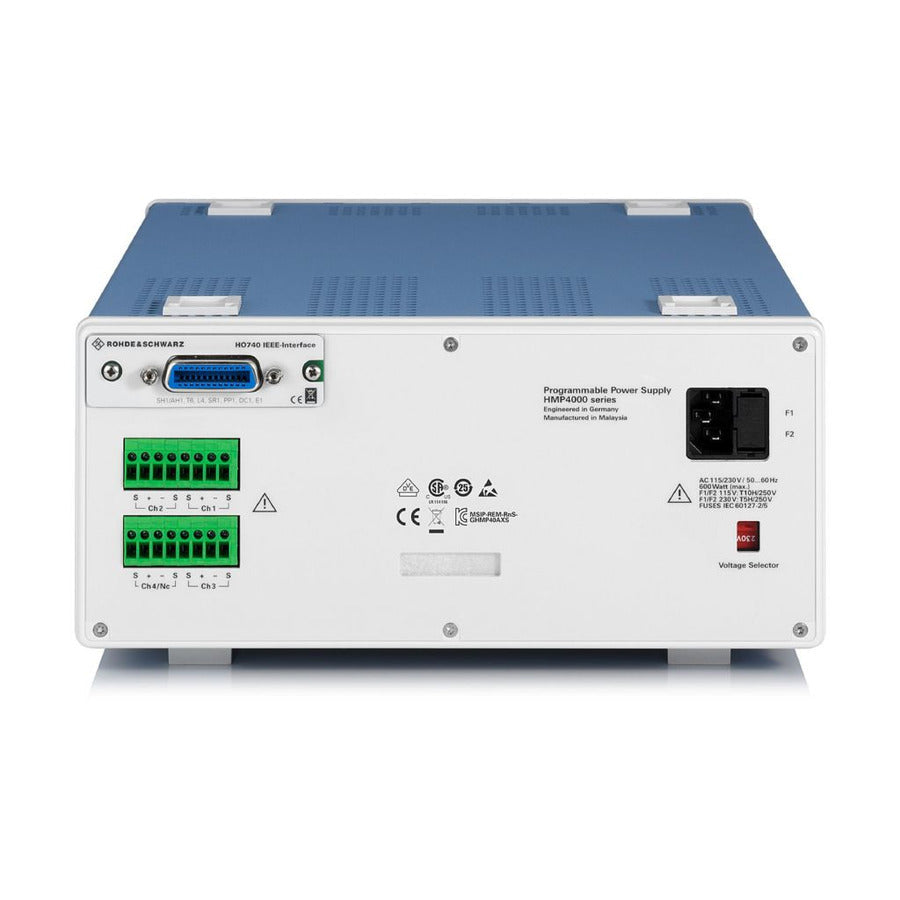

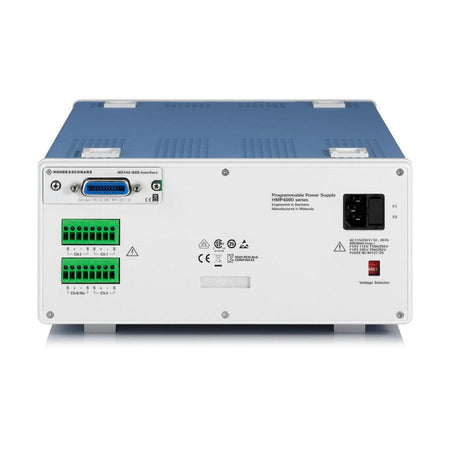

Connections on front and rear panels
Remote control of instrument functions
R&S HMP4040 Power Supply
R&S HO732 USB/LAN Dual Interface
Quick start guide
Set of power cables
Three-year warranty
