Rohde & Schwarz MXO54-BASC Oscilloscope Bundle, 4 Channel, 100MHz, 500Mpts, 12 bit, MXO 5 Series

Rohde & Schwarz MXO 5 Series - MXO54-BASC Oscilloscope Bundle

Next generation oscilloscope: evolved for more challenges

The R&S MXO 5 series deliver breakthrough oscilloscope technology to speed up understanding and testing of electronic systems.

The specifications for both the 4 and 8 channel models make the R&S MXO 5 series the industry leader in cutting-edge technology for swift and precise results. The oscilloscopes advanced customized technology and revolutionary features are indispensable for insight into circuit behavior. The impressive 15.6" Full HD capacitive touchscreen and whisper-soft audible operating noise maximize R&S MXO 5 series performance and minimize power consumption.

The new R&S MXO5 shows more of a signal's activity in both time and the frequency domains, than any other oscilloscope. With eight channels, it offers the world's fastest acquisition rate of 4.5 million acquisitions per second and 18 million waveforms per second across multiple channels. This allows engineers to capture intricate signal details and infrequent events with exceptional precision. The oscilloscope provides digital triggering on all eight channels, enabling accurate isolation of small signal anomalies. Its groundbreaking capability of 45,000 FFTs per second allows engineers to view spectrum signals with unparalleled clarity, especially for EMI and harmonic testing.

Key facts:

• Number of channels: 4

• Bandwidth: 100 MHz

• World’s fastest oscilloscope with > 4.5 million wfms/s update rate and spectrum with > 45k FFT/s

• Industry-leading architecture: 18-bit vertical resolution/12-bit ADC and 10-bit ENOB

• Zone trigger on analog, spectrum and math

• Deepest in class standard memory: 500 Mpoints

Get the big picture faster

With evolving accelerated insights

• World's first 8-channel oscilloscope to achieve > 4.5 million acquisitions/s

• World's first 8-channel oscilloscope to achieve 18 million waveforms/s across multiple channels

• Up to 90% real-time signal capture

• Simultaneous 4 × FFT spectrum analysis

See your signals accurately

With lowest noise and highest vertical resolution on up to 8 channels

• Uncompromising 12-bit ADC for high vertical resolution at all sample rates

• 18-bit architecture with HD mode

• Low noise of 130 μV at 1 mV/div at full bandwidth of 2 GHz

• Full bandwidth vertical scaling down to 500 uV/div with highest offset range of 5 V

Capture even more time

With the deepest standard memory

• Industry’s deepest memory of 500 Mpoints per channel

• Standard segmented memory 10,000 segments

• Standard history mode with 10,000 acquisitions

• Optional memory extension to 1 Gpoints per channel with 1 million segment/memory acquisitions

Trigger on every detail

With high-precision digital trigger

• World's first 8-channel oscilloscope with trigger sensitivity down to 0.0001 vertical divisions

• World's first 8-channel oscilloscope with adjustable trigger hysteresis

• World’s fastest trigger rearm time of < 21 ns

• Zone trigger on analog, spectrum and math

• Best in class trigger jitter of just 1 ps

Multispectral evolution

With even more capabilities

• World's first 8-channel oscilloscope with 4 spectra as well as independent time and frequency controls

• World's first 8-channel oscilloscope with up to 45,000 FFT/s

• RF and time domain views with independent controls

• Industry best spectrum capabilities and zone trigger come standard with each R&S MXO 5 series

SUPERIOR USER EXPERIENCE

TOOLBAR, ADVANCED USABILITY AND R&S SmartGrid

1. Toolbar

2. Main menu

3. Signal activators

4. Pop-up selection provide a list of interactive elements

5. Large touch field design

6. R&S SmartGrid function

7. Signal icon

8. Cursor labels

9. Tab display

10. Search menu

11. Help button

In The Box

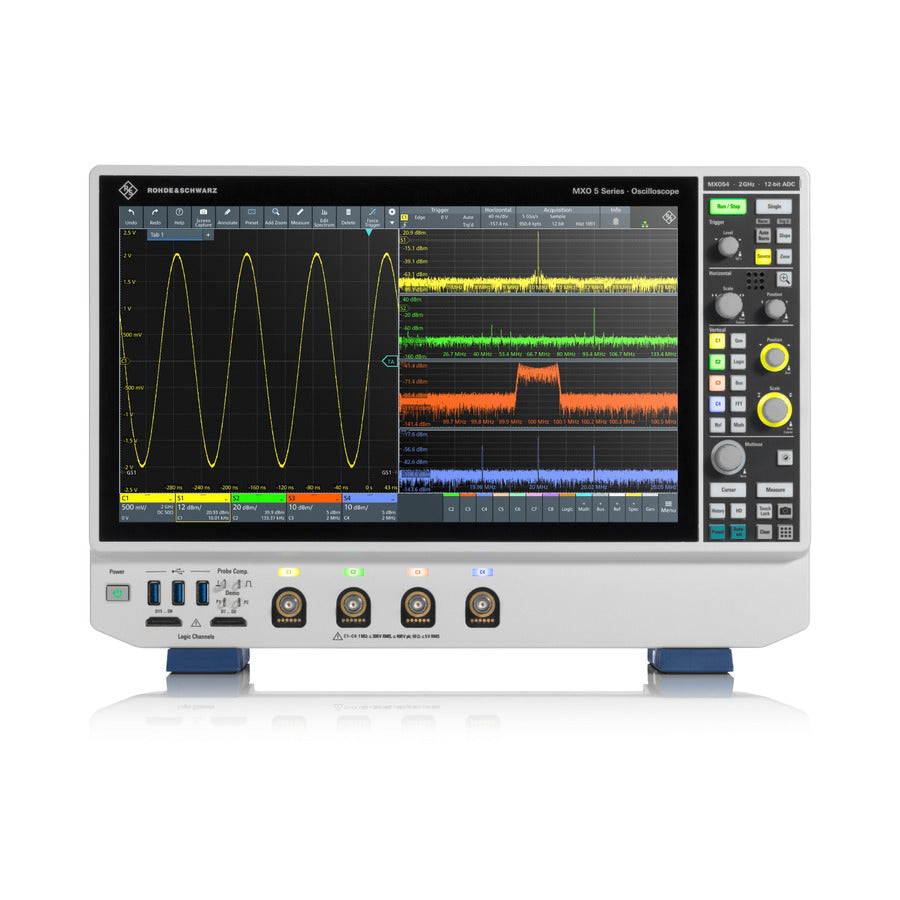

• R&S MXO54 Oscilloscope

  • MXO5-B6 ARB Generator

• 700 MHz passive probe (10:1) - 1 per channel

• Accessories Bag

• Quick Start Guide

• Power Cord
