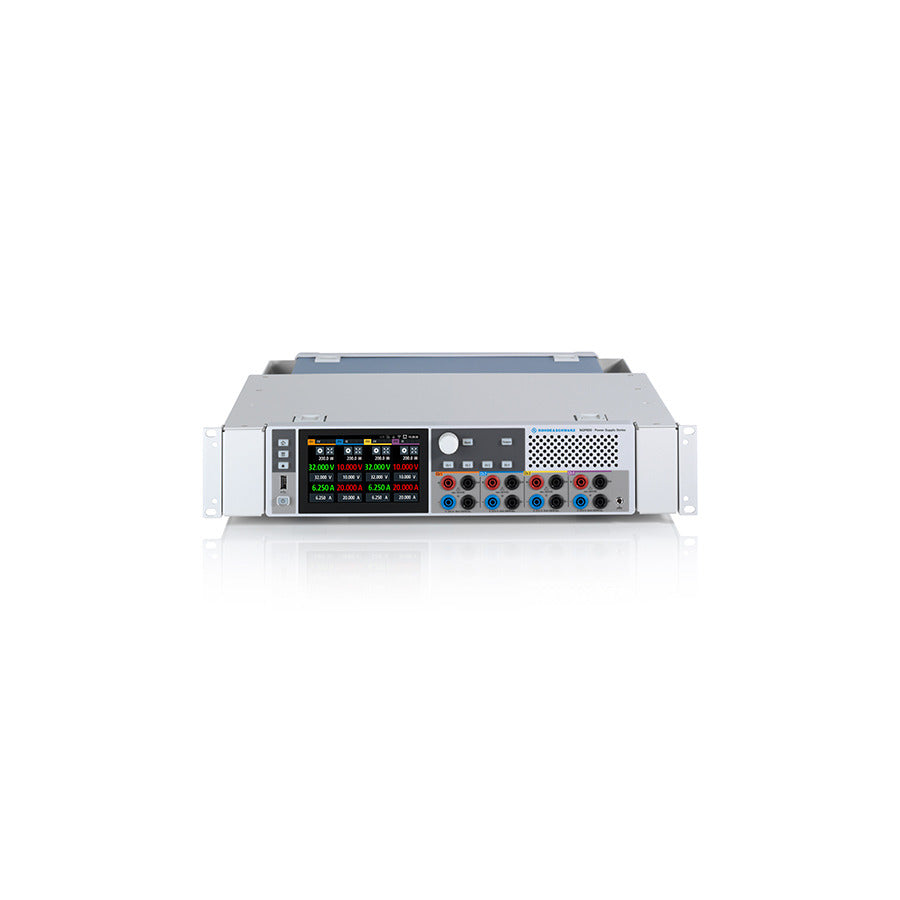

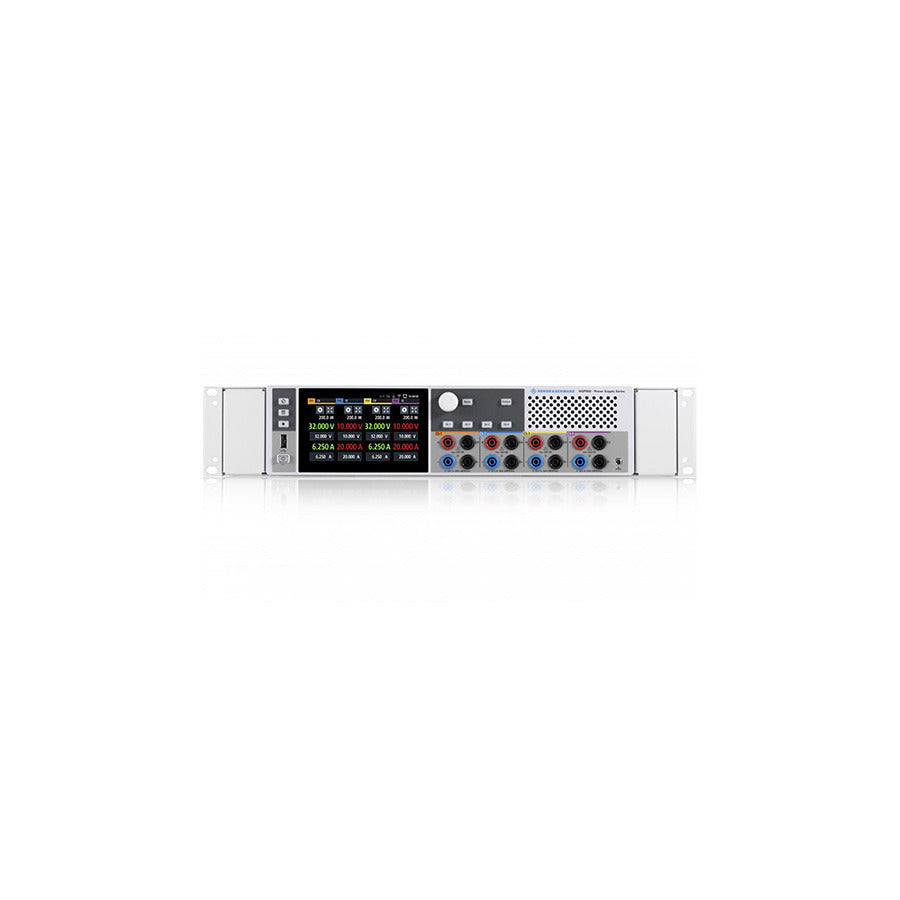

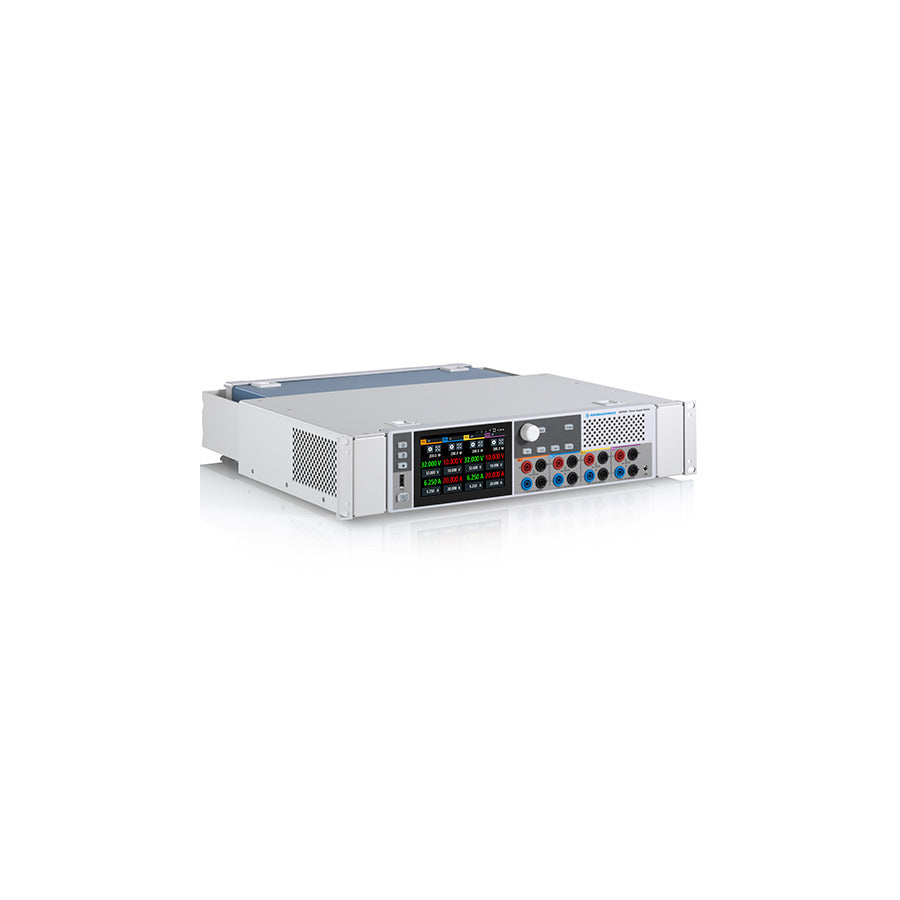

Rohde & Schwarz NGP814 Power Supply, Quad Outputl, 2x 32V/20A, 2x 64V/10A, 800W, NGP800 Series

• 4-CH Power Supply 800 W, 2 x 32V / 20A, 2 x 64V / 10A
• Maximum voltage in serial operation: 128 V
• Maximum current in parallel operation: 40 A
• Load regulation voltage: < 0.01 % + 5 mV
• Rise time: < 12 ms
• Fall time: full load: < 10 ms, no load: < 50 ms

Comprising five powerful models
The NGP800 DC power supply series, comprising five models with 400 W or 800 W, provides maximum power at a variety of operating points. The two or four 200 W out-puts can each supply up to 64 V or up to 20 A. Electrically equivalent and galvanically isolated outputs can be wired in series or parallel for up to 250 V or 80 A.

Synchronizing your outputs, performing waveform tests and logging data for in-depth analysis – all this becomes easy with the R&S®NGP800 power supply series.

An intuitive operating concept and a large touchscreen allow you to enter values much faster and to display statis-tics in realtime. All NGP800 power supplies include remote sense ter-minals, USB and a LAN interface. A user-installable GPIB interface, a digital trigger I/O, an analog input and a wire-less LAN interface are optional, making these instruments great on the bench or in an automated test system.
