Comprising five powerful models

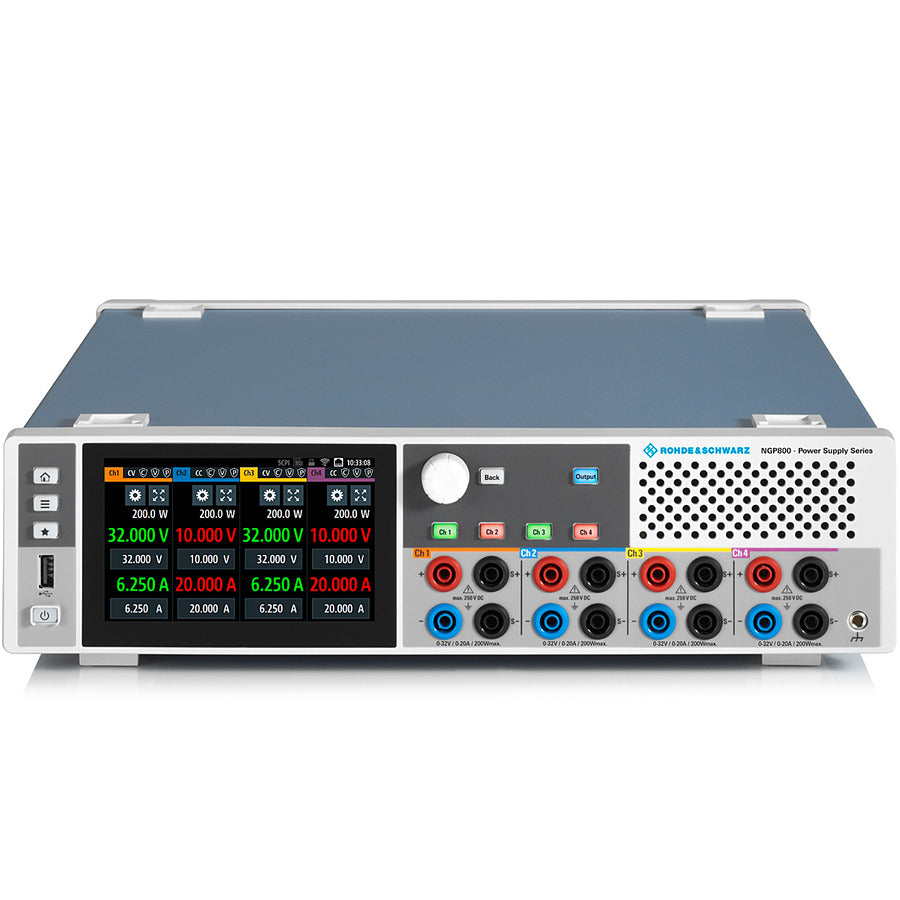

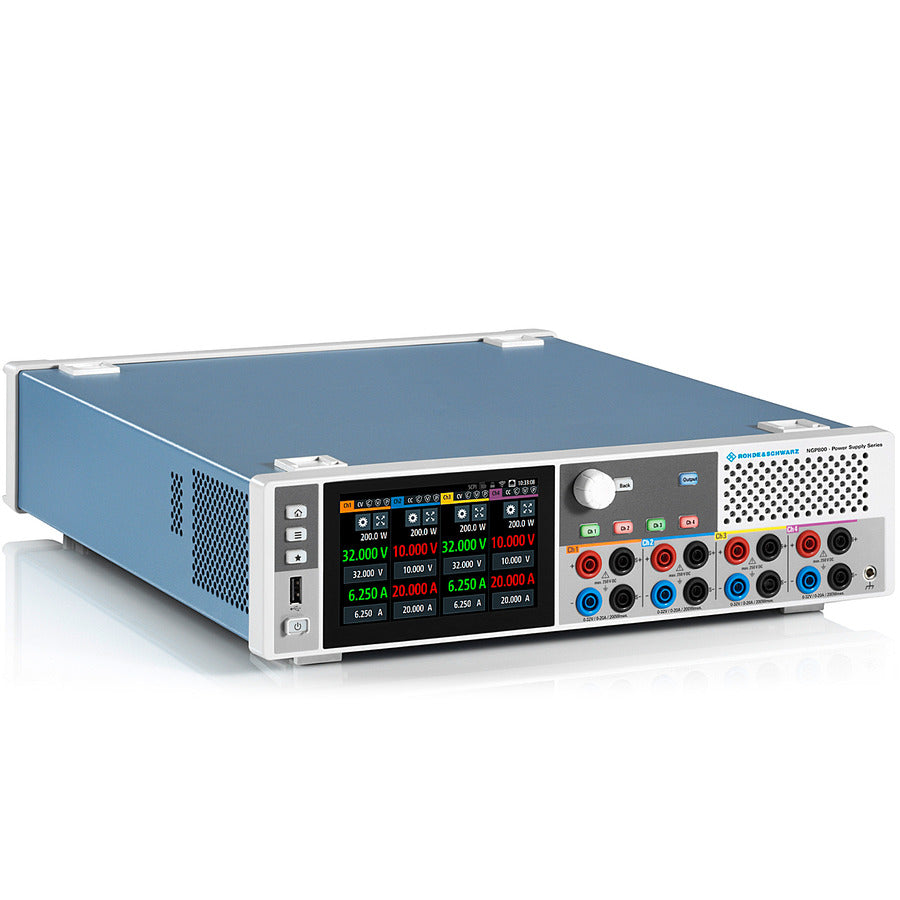

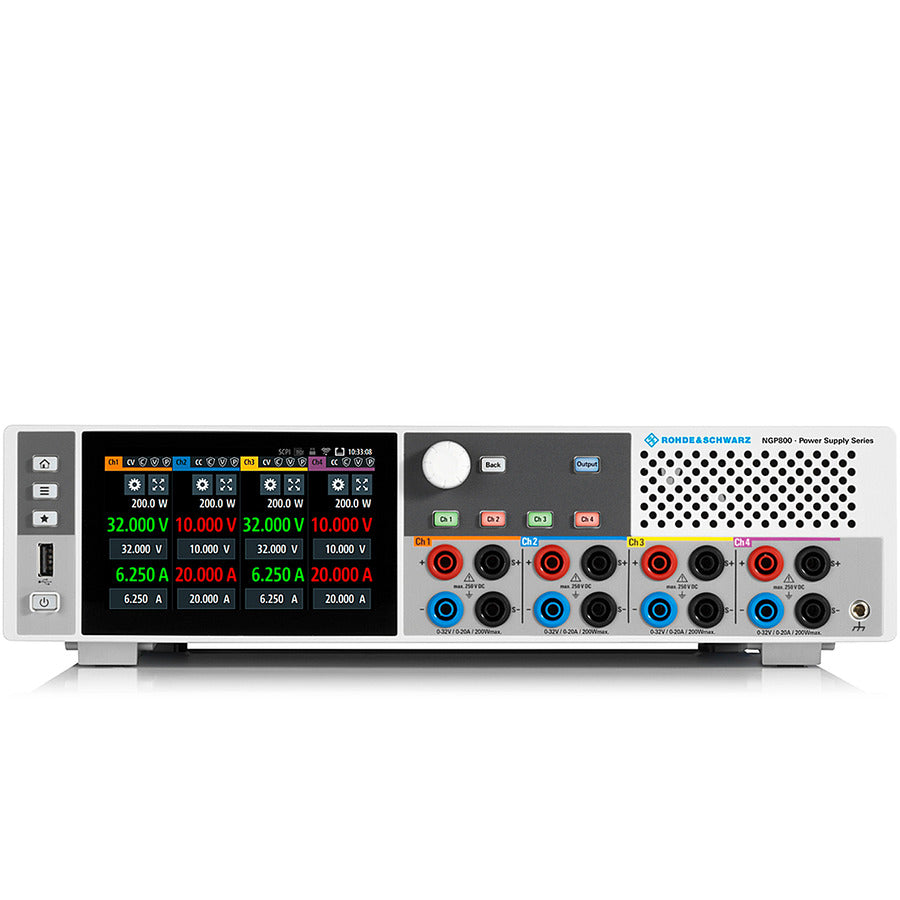

The NGP800 DC power supply series, comprising five models with 400 W or 800 W, provides maximum power at a variety of operating points. The two or four 200 W out-puts can each supply up to 64 V or up to 20 A. Electrically equivalent and galvanically isolated outputs can be wired in series or parallel for up to 250 V or 80 A.
Synchronizing your outputs, performing waveform tests and logging data for in-depth analysis – all this becomes easy with the R&S NGP800 power supply series.

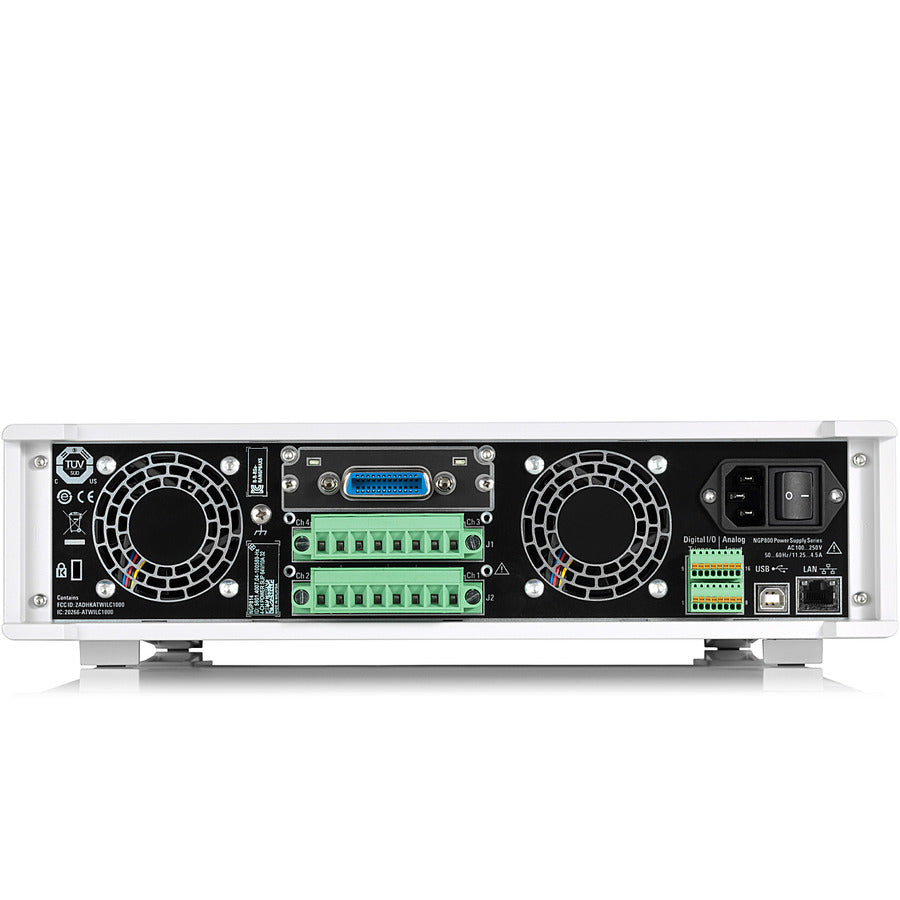

An intuitive operating concept and a large touchscreen allow you to enter values much faster and to display statistics in realtime. All NGP800 power supplies include remote sense terminals, USB and a LAN interface. A user-installable GPIB interface, a digital trigger I/O, an analog input and a wireless LAN interface are optional, making these instruments great on the bench or in an automated test system.
