Rohde & Schwarz NRP8S
Rohde & Schwarz NRP8S
Rohde & Schwarz
SKU: 24942.1-U | MPN: NRP8S

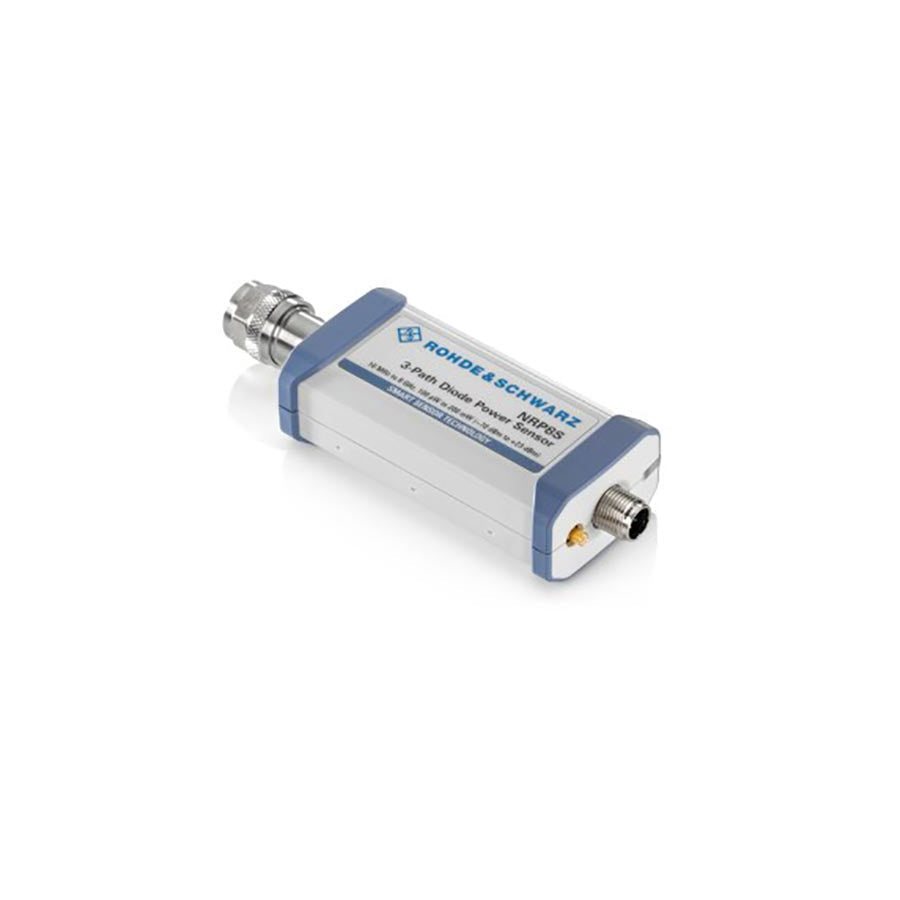

Rohde & Schwarz NRP8S Power Sensor, 3-Path Diode, 10MHz to 8GHz, N Type Connector, NRPXXS Series

£2,400.00
Need this Equipment?

We don't hold stock of this product, but we can source it for you! Request a quote below and we will get back to you.

Ask an expert!

Email +44 (0)1492 643 060

Rohde & Schwarz

TestEquity works closely with Rohde & Schwarz to provide engineers, manufacturers, and research organisations with trusted test and measurement solutions for design, validation, production, and service. Our team combines technical knowledge with practical application support to help you choose the right instruments for your requirements, whether you’re working in RF, wireless communications, aerospace, defence, electronics, or education.

  • NRP8S: 10 MHz to 8 GHz
  • Level range: -70 dBm to +23 dBm
  • 100 pW to 200 mW
  • >50 000 readings/s
  • 10,000 triggered measurements/s
  • Dynamic range: –70 dBm to +23 dBm
  • Trigger I/O port directly on the sensor
  • Detachable cables with different connectors (e.g. USB)
  • High measurement accuracy across entire level range
  • Perform fast and accurate measurements of low levels
  • Operation with NRP2 base unit, a laptop/PC and many Rohde & Schwarz instruments

Taking power measurements to the next level
Rohde & Schwarz NRP8, NRP18, NRP33 Three-path Diode Sower Sensors The NRP8S/SN, NRP18S/SN, NRP33S/SN three-path diode power sensors are self-contained, fully characterized instruments. They can be operated with the R&S NRP2 base unit, with a laptop/PC via USB, and with many Rohde & Schwarz instruments (e.g. signal generators, signal and spectrum analyzers, network analyzers). The NRP8SN, NRP18SN and NRP33SN power sensors additionally offer LAN capability, allowing remote control over large distances.

The NRPxxS and NRPxxSN power sensors are based on an enhanced three-path technology. This substantially reduces the sensors' measurement noise, providing a lower measurement limit of -70 dBm and a dynamic range of 93 dB. The result is a significant enhancement in measurement speed and accuracy, especially at low levels. This applies to CW signals as well as to signals of any bandwidth and type of modulation.

Minimizing measurement uncertainty
Even complex test setups represent no challenge for the NRPxxS/SN power sensors. Unwanted effects such as cable losses and reflections can be compensated using offset, S‑parameter and Gamma correction.
