Rohde & Schwarz RT-ZD20
Rohde & Schwarz RT-ZD20
Rohde & Schwarz RT-ZD20
Rohde & Schwarz RT-ZD20
Rohde & Schwarz
SKU: 25753.1 | MPN: RT-ZD20
New

Rohde & Schwarz RT-ZD20 Differential Broadband Probe, 1.5GHz, 10:1, Micro Button, RT-Zxx Series

-11% £5,990.00 VAT Excl.
£5,355.00
£5,355.00
Available on Request
Manufacturers lead time applies

Ask an expert!

Email +44 (0)1492 643 060

Rohde & Schwarz

TestEquity works closely with Rohde & Schwarz to provide engineers, manufacturers, and research organisations with trusted test and measurement solutions for design, validation, production, and service. Our team combines technical knowledge with practical application support to help you choose the right instruments for your requirements, whether you’re working in RF, wireless communications, aerospace, defence, electronics, or education.

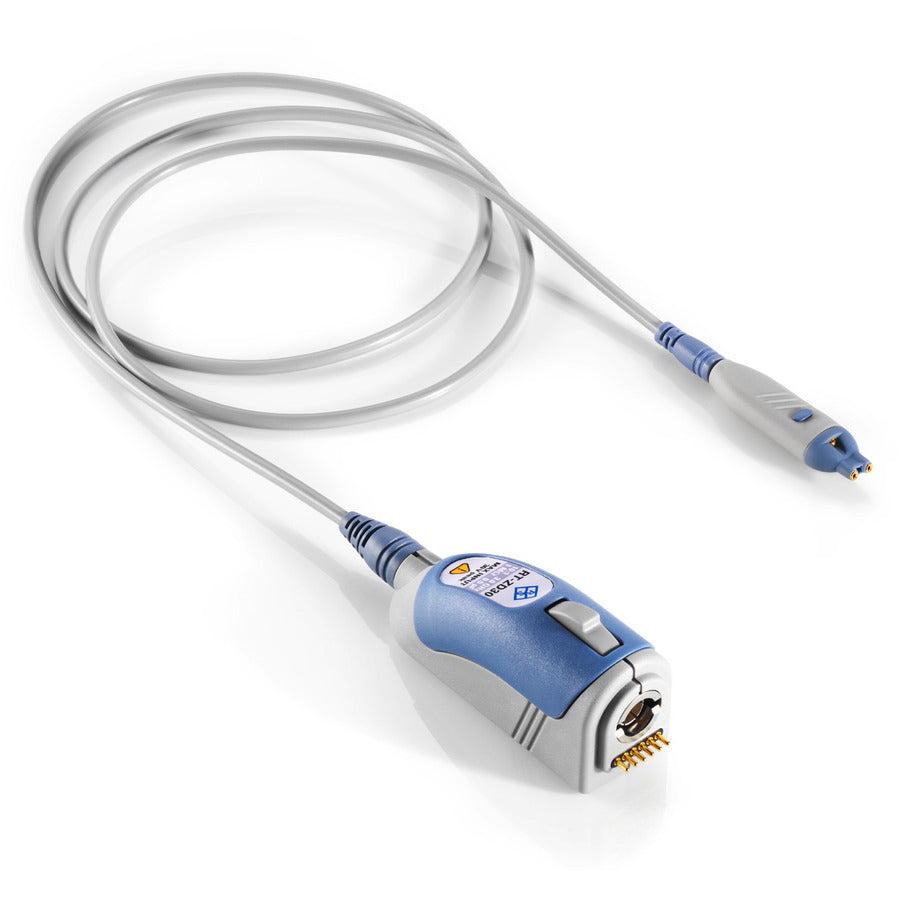

RT-ZD20 Differential Broadband Probe, 1.5 GHz

Features:

  • Attenuation: 10:1
  • Bandwidth: 1.5 GHz
  • Max. voltage: Between signal sockets: ±5 V (±5 V offset compensation), each signal socket to ground: ±8 V (±22 V offset compensation)
  • Input Impedance: 1 Megohm || 0.6 pF

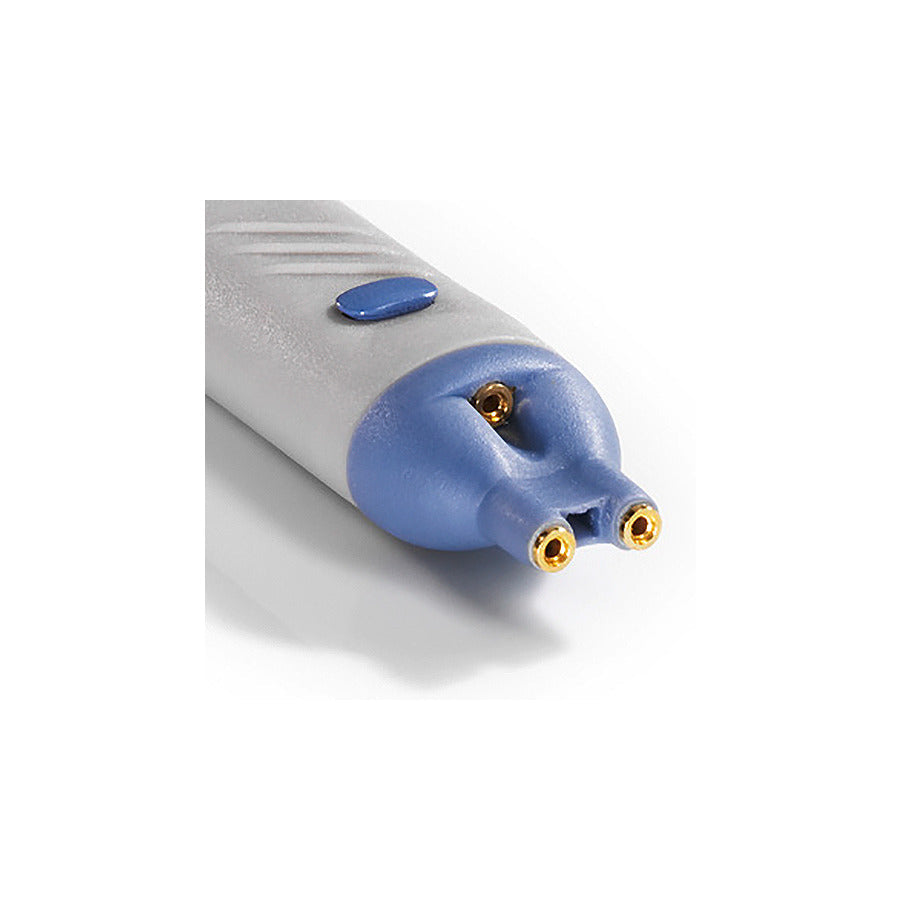

  • ProbeMeter and micro button for instrument control, R&S probe interface
  • 1.2 m Cable
  • Includes Accessories

Wide dynamic range expands the range of applications
The wide dynamic range of ±5 V with an additional offset compensation of ±5 V (differential mode) and ±22 V1) (common mode) of the R&S RT-ZD10/20/30/40 differential broadband probes make them universal measurement tools. High-speed, single-ended signals at DDR storage ports are just as easily measured as symmetrically fed RF signals or voltages without reference to ground in switching power supplies.

Accessories Supplied: (10) Signal pin, solder-in; (4) Signal pin, variable spacing; (1) Browser adapter; (2) Adapter, square pin; (1EA) Flex adapter, solder-in, 4cm/1.6in & 10cm/3.9in; (1EA) Flex adapter, square pin, 4cm/1.6in & 10cm/3.9in; (2) Lead, 6cm/2.4in; (1) Lead, 15cm/5.9in; (2) Mini clip; (2) Micro clip; (1) Marker band kit; (1) Carrying case with foam inlay.
