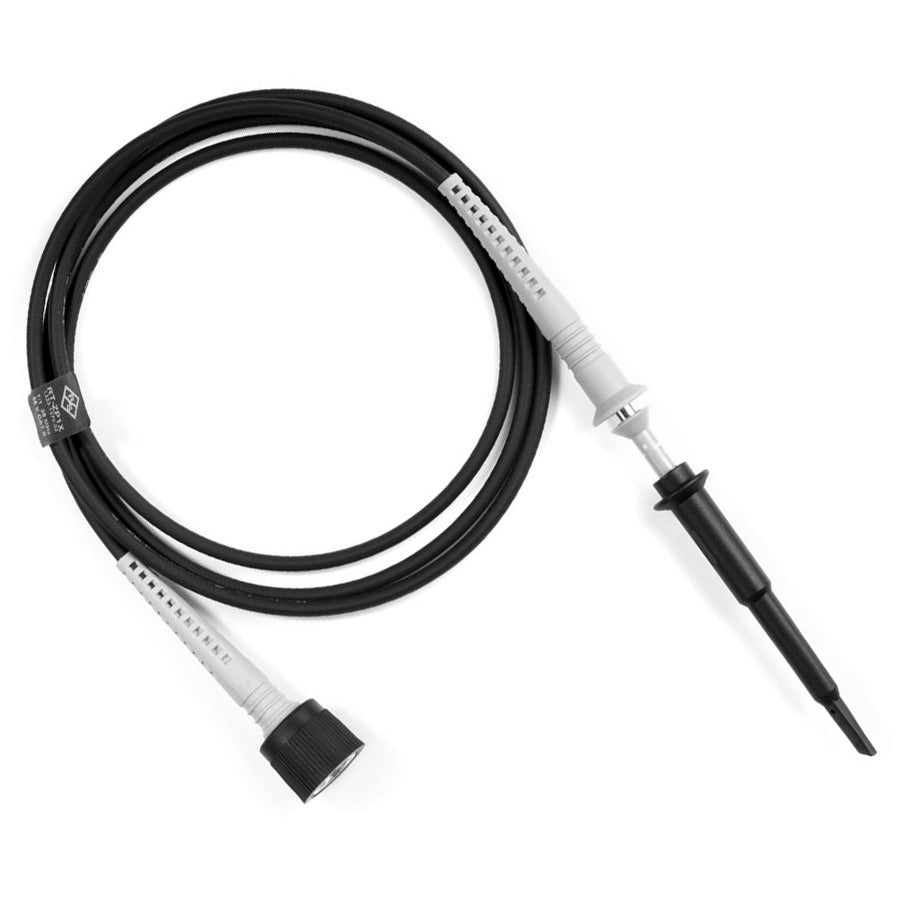

Rohde & Schwarz RT-ZP1X
Rohde & Schwarz RT-ZP1X
Rohde & Schwarz
SKU: 58417.1 | MPN: RT-ZP1X
New

Rohde & Schwarz RT-ZP1X Passive Probe, 38MHz, 1X, 39 pF, 55V, CAT2, RT-Zxx Series

-11% £345.00 VAT Excl.
£308.00
£308.00
Available on Request
Manufacturers lead time applies

Ask an expert!

Email +44 (0)1492 643 060

Rohde & Schwarz

TestEquity works closely with Rohde & Schwarz to provide engineers, manufacturers, and research organisations with trusted test and measurement solutions for design, validation, production, and service. Our team combines technical knowledge with practical application support to help you choose the right instruments for your requirements, whether you’re working in RF, wireless communications, aerospace, defence, electronics, or education.

Rohde & Schwarz RT-ZP1X 1:1 38 MHz Passive Oscilloscope Probe

Features and Specifications
  • Attenuation: 1:1
  • Bandwidth: > 38 MHz (meas.)
  • Rise time: 9 ns (meas.)
  • Input voltage: DC 60V / AC 30V (RMS)
  • Input capacitance: 39 pF + oscilloscope input impedance (meas.)
  • Interface: BNC, 1 Megohm, readout

The RT-ZP1X is a 38MHz Passive Voltage Probe, 2.5mm Tip. It has an attenuation of 1:1. It has a Maximum Rated Input Voltage of 55 V rms CAT II and an Input Capacitance 39 pF. It is an all-rounder for general purpose applications

What's in the Box
  • BNC Adapter 2.5
  • Coding Rings (set) 3x4 Colors
  • Ground Blade 2.5
  • 2x Copper Pad, self adhesive (2 x 2 cm) [0.79" x 0.79"]
  • Ground Lead 15 cm
  • Ground Spring 2.5
  • IC-Cap 2.5 0.5 mm pitch (green)
  • IC-Cap 2.5 0.65 mm pitch (blue)
  • IC-Cap 2.5 0.8 mm pitch (gray)
  • IC-Cap 2.5 1.0 mm pitch (brown)
  • IC-Cap 2.5 1.27 mm pitch (black)
  • Insulating Cap 2.5
  • Operating Manual
  • RT-ZP1X Probe
  • 2x Solid Tip CuBe 0.5 mm
  • 2x Spring Tip gold plated 0.5 mm(installed in probe)
  • Sprung Hook 2.5(plugged on probe)
  • Protection Cap 2.5
