TestEquity works closely with Rohde & Schwarz to provide engineers, manufacturers, and research organisations with trusted test and measurement solutions for design, validation, production, and service. Our team combines technical knowledge with practical application support to help you choose the right instruments for your requirements, whether you’re working in RF, wireless communications, aerospace, defence, electronics, or education.
From embedded developers to service technicians to educators – the wide range of functions address a broad group of users. State-of-the-art, high-performance technology in an extremely silent design meets the high requirements of today’s customers. These oscilloscopes include a wide range of upgrade options, providing true investment protection for the future.
The R&S RTC1000 is an X-in-one instrument that offers the functionality of an oscilloscope, logic analyzer, protocol analyzer, frequency analyzer, pattern generator, function generator, digital voltmeter and component tester in a single instrument.
300 MHz Bandwidth (Option included)
2 analog channels
Maximum sampling rate (Gsamples/s) 1.25/channel, 2.5 interleaved
2 Msample memory depth
State-of-the-art A/D converters for low-noise measurements
640 x 480 px. 6.5-inch VGA color display
Wide selection of automatic measurement functions
QuickView: key results at the press of a button
Mask test: easy creation of a new mask with just a few keystrokes

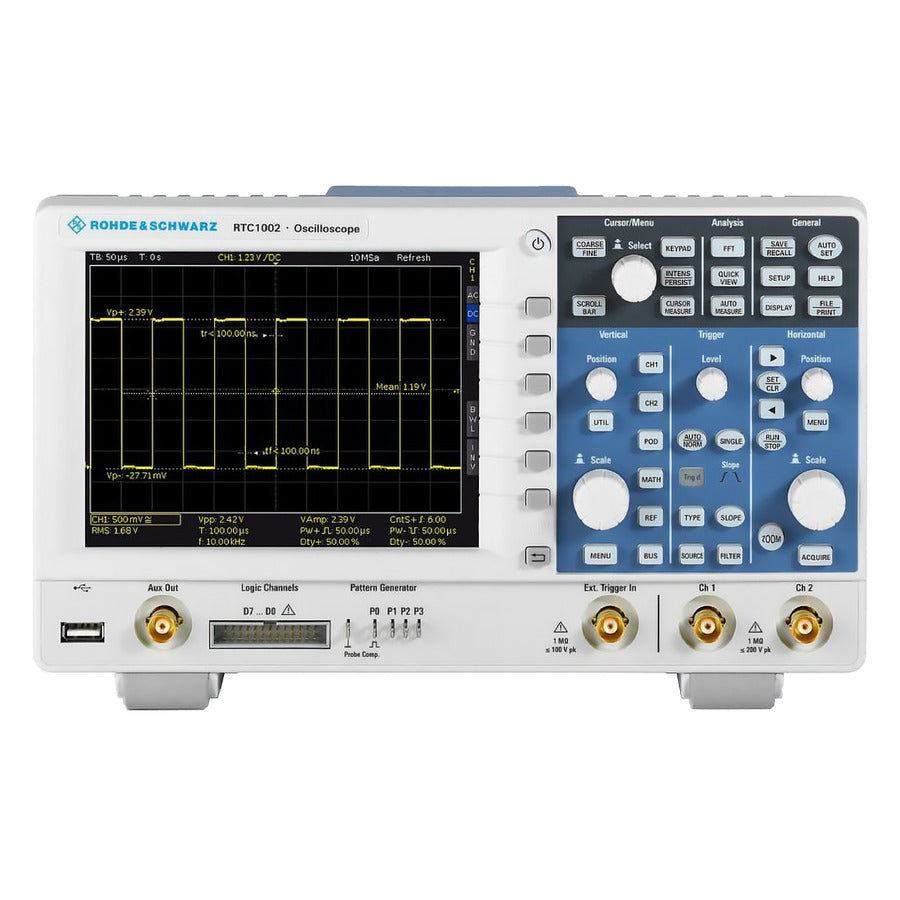

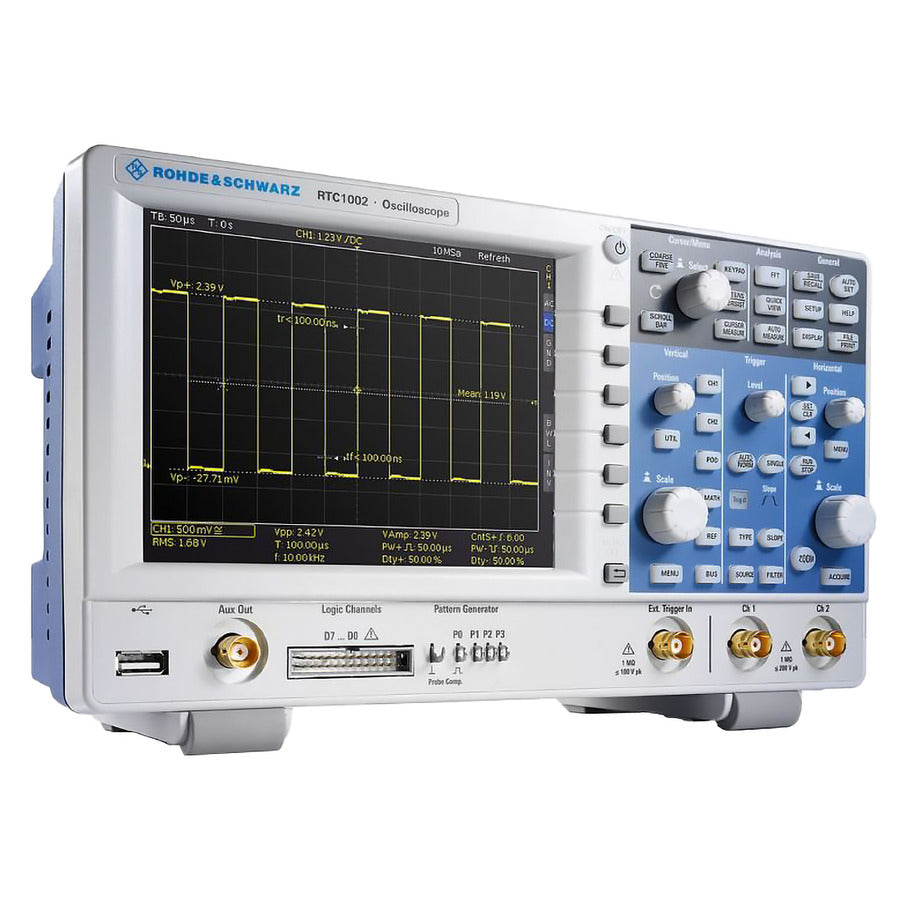

RTC1002 Oscilloscope
RTC-B223 300 MHz Bandwidth option
RTC-PK1 Application Bundle, containing:
RTC-B6 Waveform generator
RTC-K1 I2C/SPI Trigger and Decode
RTC-K2 UART/RS232 Trigger and Decode
RTC-K3 CAN/LIN Trigger and Decode
Oscilloscope
Logic analyzer (RTC-B1)
Protocol analyzer
Waveform and pattern generator (RTC-B6)
Digital voltmeter
Component tester
Frequency analysis mode
Mask test mode
With a sampling rate of up to 2 Gsample/s and a memory depth of up to 2 Msample, the R&S RTC1000 oscilloscope excels in its class. A waveform update rate of more than 10 000 waveforms/s ensures a responsive instrument that reliably catches signal faults. Included tools provide quick results, e.g. QuickMeas, mask tests, FFT, math, cursors and automatic measurements (including statistics)
Your benefit |
Features |
|---|---|
Get your results quicker |
Fast boot and auto measurement for concise and comprehensive results |
Investment protection |
Expands according to your needs with software licenses |
Compactness saves desk space |
Highest integration of instruments in a small form factor |
Generate analog and digital stimuli
The integrated R&S RTC-B6 waveform and pattern generator up to 50 Mbit/s is useful for educational purposes and for implementing prototype hardware. In addition to common sine, square/pulse, ramp and noise waveforms, it outputs 4-bit patterns. Waveforms and patterns can be imported as CSV files or copied from oscilloscope waveforms. You can preview signals before playing them back to quickly check signal correctness. Predefined patterns for e.g. I2C, SPI, UART and CAN/LIN are provided.
RTC1002 Oscilloscope (RTC-BNDL)
RT-ZP03S single-ended passive probe for each channel
Power Cord
Getting started manual
Safety Instructions
