Rohde & Schwarz RTM-K3 Serial Triggering and Decoding Bundle, CAN/LIN, Software, RTM Series

-11% £1,450.00 VAT Excl.
£1,296.00
£1,296.00
Available on Request
Manufacturers lead time applies

Ask an expert!

Email +44 (0)1492 643 060

Rohde & Schwarz

TestEquity works closely with Rohde & Schwarz to provide engineers, manufacturers, and research organisations with trusted test and measurement solutions for design, validation, production, and service. Our team combines technical knowledge with practical application support to help you choose the right instruments for your requirements, whether you’re working in RF, wireless communications, aerospace, defence, electronics, or education.

CAN/LIN oscilloscope software

Triggering and decoding

Key facts:

  • Symbolic decoding for CAN and LIN address, including industry-standard CAN DBC file support
  • On-screen serial decoding is time-correlated with the serial data waveform

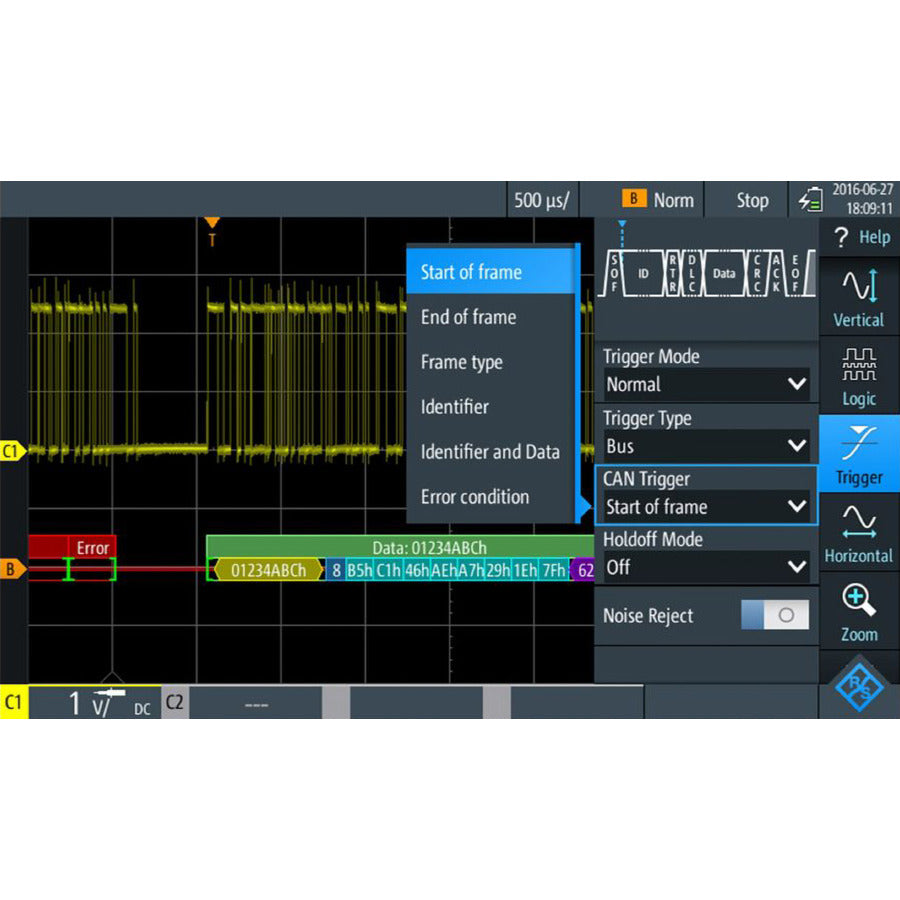

  • Trigger on start of frame, frame ID, data and various error conditions
  • Powerful search and navigate capability on CAN start of frame, frame type, identifier, data and error conditions
  • Fastest CAN and LIN eye-diagram mask testing with standard mask test functionality
  • Multi-domain icon

Oscilloscope software

All Rohde & Schwarz oscilloscopes support triggering and decoding of CAN and LIN buses, including CAN DBC file import. You can set up decoding in seconds. For detailed analysis, results can be viewed as color-coded telegrams and/or in a table. Errors are identified efficently and reliably using the hardware-accelerated trigger. You can trigger on start of frame, frame ID, data and various error conditions.
