Home » Oscilloscope Probes » Teledyne LeCroy PP016 Passive Probe, 300MHz, 1X, 10X, 12 pF, 600V, CAT2, PP Series
Teledyne LeCroy PP016
Teledyne LeCroy PP016
Teledyne LeCroy
SKU: 45245.1 | MPN: PP016
New

Teledyne LeCroy PP016 Passive Probe, 300MHz, 1X, 10X, 12 pF, 600V, CAT2, PP Series

£175.00
Available on Request
Manufacturers lead time applies

Ask an expert!

Email +44 (0)1492 643 060

Teledyne LeCroy

Teledyne LeCroy is a global leader in oscilloscopes, protocol analysers and test solutions for electronics, automotive, aerospace and communications applications. Its portfolio includes high-performance oscilloscopes, serial data analysers, power analysers and quantum testing systems designed to deliver exceptional insight into complex electronic signals. Engineers worldwide trust Teledyne LeCroy for precision, innovation and advanced debugging capabilities.

Teledyne LeCroy PP016 1:1/10:1 300 MHz Passive Oscilloscope Probe

Features and Specifications
  • Attenuation Ratio 1:1/10:1
  • 10MHz/300 MHz bandwidth at 1x and 10x respectively
  • Maximum Voltage 600 V
  • Input Capacitance 46pF /12 pF at 1x and 10x respectively
  • Input Resistance 1MΩ / 10 MΩ
  • Cable Length 1.2 m
  • BNC Interface

The PP016 is a passive probe designed to be used with Teledyne LeCroyc WaveAce oscilloscopes. It has switchable attenuation of 1x and 10x with input resistance of 1MΩ / 10 MΩ.

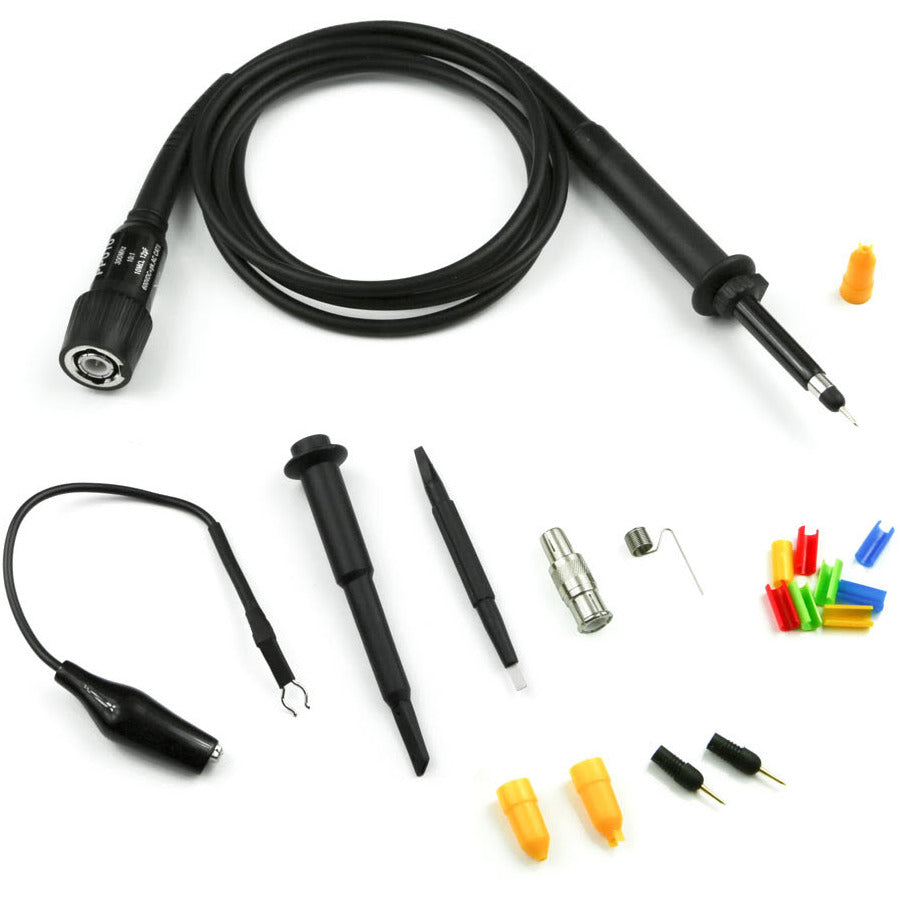

What's in the Box
  • Standard Ground Lead
  • Sprung Hook
  • 2x Color Coding Rings (set)
  • Adjustment Tool
  • Ground Attachment
  • 2x Replacement Probe Tip
  • BNC Adaptor
  • 2x IC Test Tip
