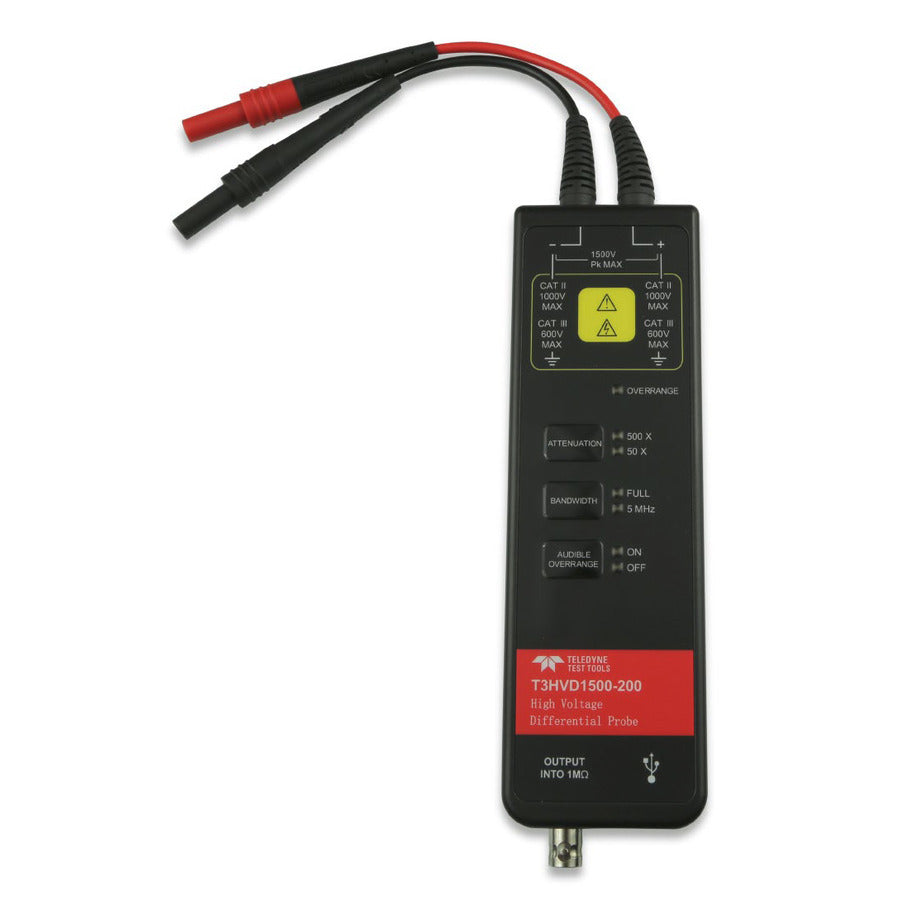

Teledyne LeCroy T3HVD1500-200 High-Voltage Differential Probe, 200MHz, 1.5kV, 2 pF, 10 M, T3HVD Series

£2,680.00
Available on Request
Manufacturers lead time applies

Ask an expert!

Email +44 (0)1492 643 060

Teledyne LeCroy

Teledyne LeCroy is a global leader in oscilloscopes, protocol analysers and test solutions for electronics, automotive, aerospace and communications applications. Its portfolio includes high-performance oscilloscopes, serial data analysers, power analysers and quantum testing systems designed to deliver exceptional insight into complex electronic signals. Engineers worldwide trust Teledyne LeCroy for precision, innovation and advanced debugging capabilities.

T3HVD High-Voltage Probe Series

T3HVD1500-200 Specs:

  • Bandwidth (-3 dB): 200 MHz
  • Rise Time: ≤ 1.75 ns
  • Attenuation / Range Selection: 50 x / 500 x
  • Max Differential Voltage (DC + Peak AC): 50 x ± 150 V / 500 x ± 1500 V
  • Max Input Voltage (V rms): CAT II 1000 V / CAT III 600 V
  • Common Mode Voltage (DC + Peak AC): ± 1500 V
  • Input Impedance:
     (Single Ended To Ground): 5 Megohm, < 4 pF / (Between Inputs) 10 Megohm, < 2 pF

Series Features:

  • Accurate and easy voltage measurements
  • Combined single ended and differential measurement capability
  • Use with any scope with a 1 Megohm input and BNC connector
  • Over-Voltage alarm with dual indicators
  • Switchable bandwidth limit to reduce noise

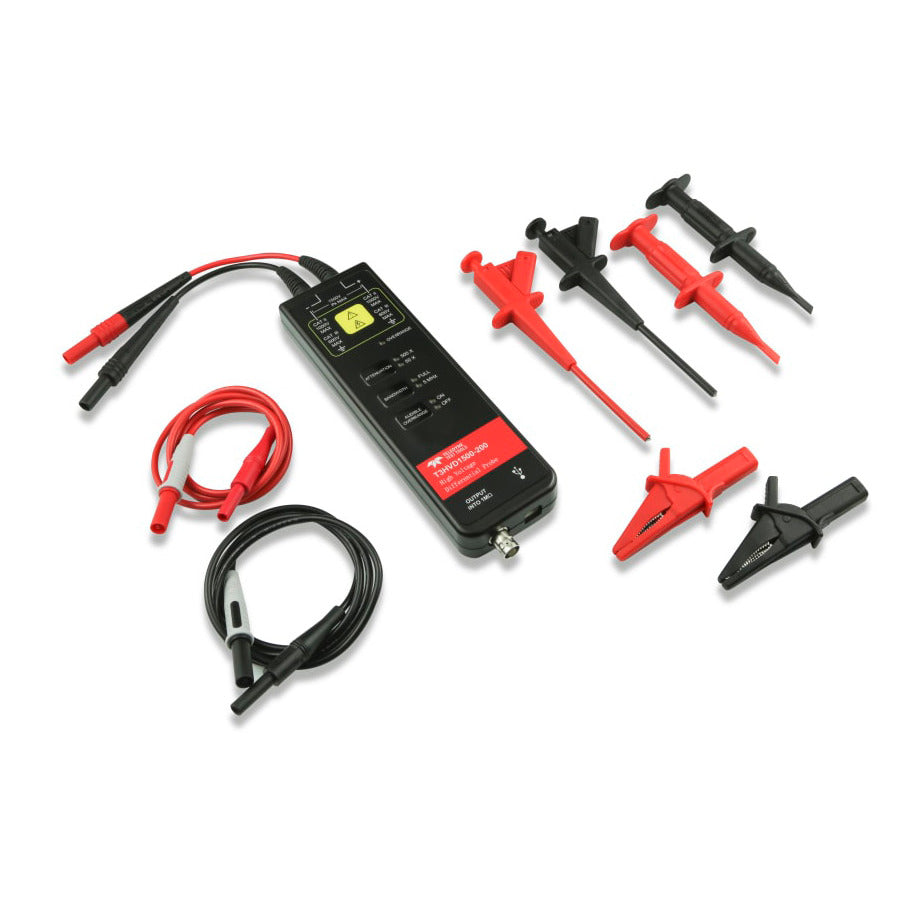

Accessories supplied:

  • T3HVD1500-70 and T3HVD1500-200 Alligator Clips x 2
  • T3HVD7000-100 Alligator Clips x 2
  • T3HVD Pincer Clips x 2
  • T3HVD Hook Clips x 2
  • 1 m T3HVD Extender Leads x 2
  • 1 m T3HVD BNC to BNC Cable x 1
  • 1.5 m T3HVD USB A to B Power Cable x 1
  • USB power supply

The T3HVD Series range of high-voltage differential probes are wide bandwidth active differential voltage probes, featuring models with bandwidths up to 200 MHz bandwidth, voltages up to ± 7000 V (DC + Peak AC), fast and accurate waveform capture, measurement accuracy of ± 2 % and low test circuit loading. These probes can be used with any oscilloscope having a 1 Megohm BNC input.
