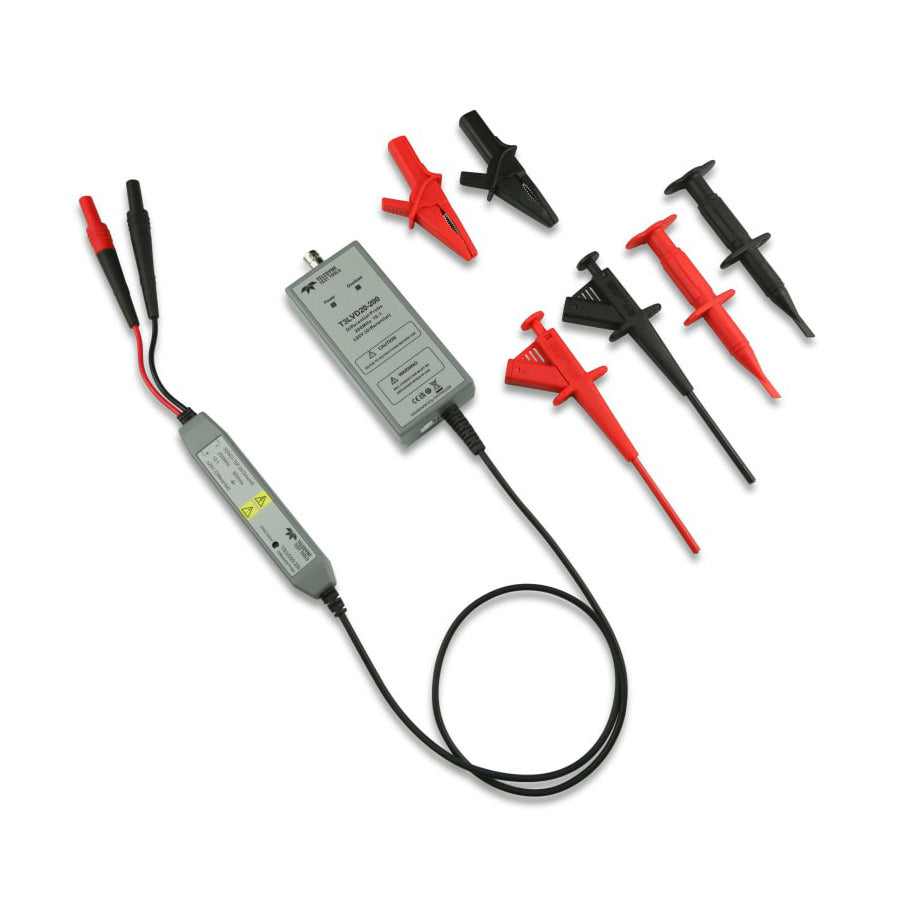

Teledyne LeCroy T3LVD20-200
Teledyne LeCroy T3LVD20-200
Teledyne LeCroy
SKU: 45582.1 | MPN: T3LVD20-200
New

Teledyne LeCroy T3LVD20-200 Low-Voltage Active Differential Probe, 200MHz, 20V, 3.5 pF, 1 M

£1,800.00
Available on Request
Manufacturers lead time applies

Ask an expert!

Email +44 (0)1492 643 060

Teledyne LeCroy

Teledyne LeCroy is a global leader in oscilloscopes, protocol analysers and test solutions for electronics, automotive, aerospace and communications applications. Its portfolio includes high-performance oscilloscopes, serial data analysers, power analysers and quantum testing systems designed to deliver exceptional insight into complex electronic signals. Engineers worldwide trust Teledyne LeCroy for precision, innovation and advanced debugging capabilities.

T3LVD20-200 Low-Voltage Active Differential Probe

Features:

  • Accurate and easy voltage measurements
  • Attenuation Ratio 10:1
  • Wide 200 MHz bandwidth
  • Differential signal input of ± 20 V (DC + Peak AC)
  • High differential input impedance of 1 Megohm / <3.5 pF
  • Maximum common mode voltage of ± 60 V
  • Combined single ended and differential measurements
  • Use with any scope with a 50 Ohm or 1 Megohm input and BNC connector
  • Over-Voltage protection with dual indicators

Supplied Accessories:

  • Alligator Clips x 2 CATIII 1000 V / CATIV 600 V
  • Gripper Clips x 2 CATIII 1000 V
  • Test Hook x 2 CATIII 1000 V
  • BNC 50 Ohm Feedthrough Termination Adapter x 1 50 Ohm, 1 W
  • BNC Output Cable x 1 1 m, BNC – BNC Coaxial Cable
  • USB Cable x 1 1.5 m, Type A Male – Type B Male
  • Wall Socket USB Power Supply x 1 Input: 100 V – 240 V, Output: 5 V / 1 A

The T3LVD20-200 low-voltage differential probe is a wide bandwidth active differential voltage probe, featuring 200 MHz bandwidth, ± 20 V (DC + Pk AC), fast and accurate waveform capture, measurement accuracy of 2 % and low test circuit loading. This probe can be used with any oscilloscope having a 50 Ohm or 1 Megohm BNC input.
