Tektronix Education and Teaching Labs

Tek and Keithley provide a comprehensive line of quality engineering test equipment that suits all levels of learners from undergraduate engineering students all the way up to graduate programs and advanced research.

From student oscilloscopes and entry level benches for learning engineering fundamentals, to more advanced instruments that teach mixed-signal circuit designs and IoT concepts, prepare your students with the skills they need to innovate and own the future.

Solutions for Education

University lab equipment designed to prepare your students for careers in engineering

Tektronix has a history of creating the test and measurement tools that help engineers innovate faster. Your classrooms and labs are where the world will get its next generation of engineers.

From bench oscilloscopes for basic measurement to digital multimeters, waveform generators, software, and service plans, Tektronix provide a complete solution to make sure your labs meet the ever-changing curriculum landscape.

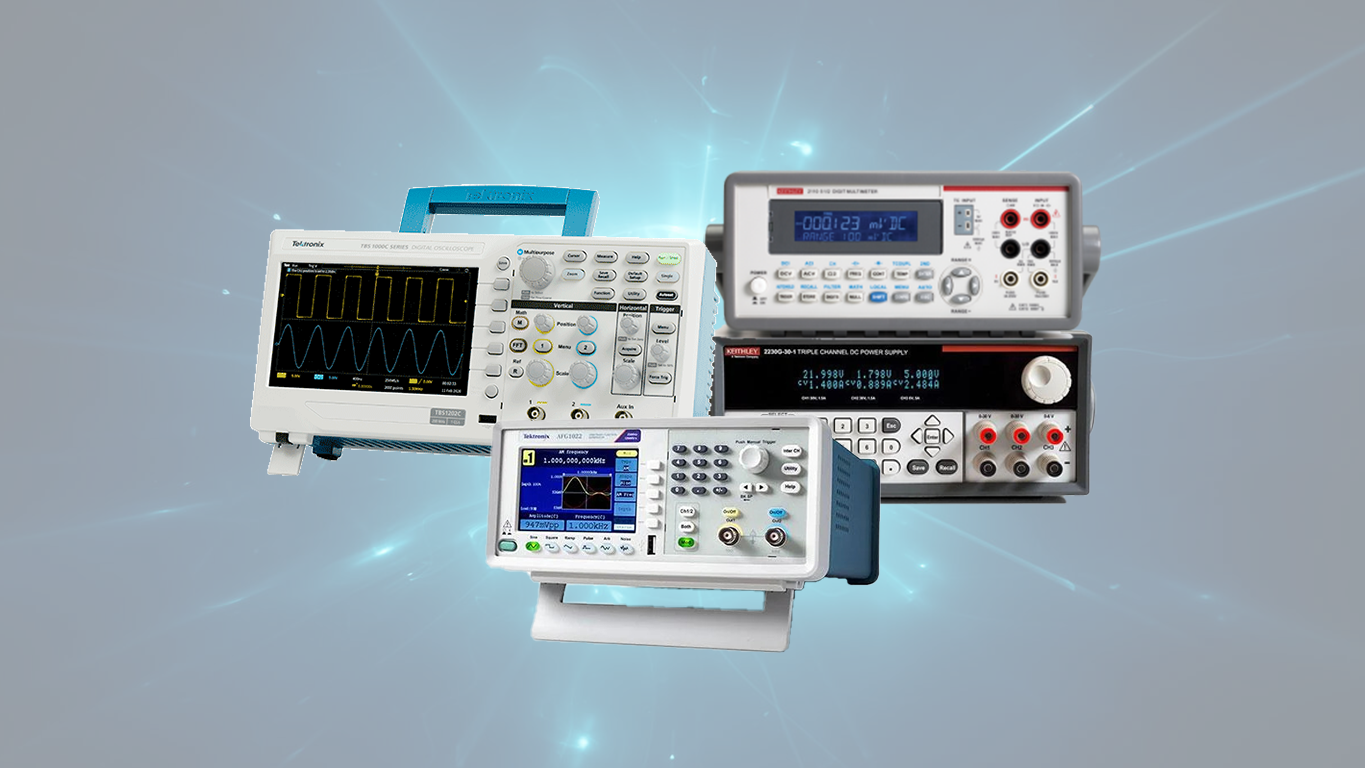

Tektronix Electronic Engineering Fundamentals Bench

Incorporating easy to use oscilloscopes, signal generators, digital multimeters and power supplies to give confidence to the student without overwhelming them with advanced features.

Designing, developing & testing new technology all starts with understanding the basic fundamentals of circuit design. The bench equipment offered for this lab incorporates easy to use oscilloscopes, signal generators, digital multimeters and power supplies to give confidence to the student without overwhelming them with advanced features not needed at this time.

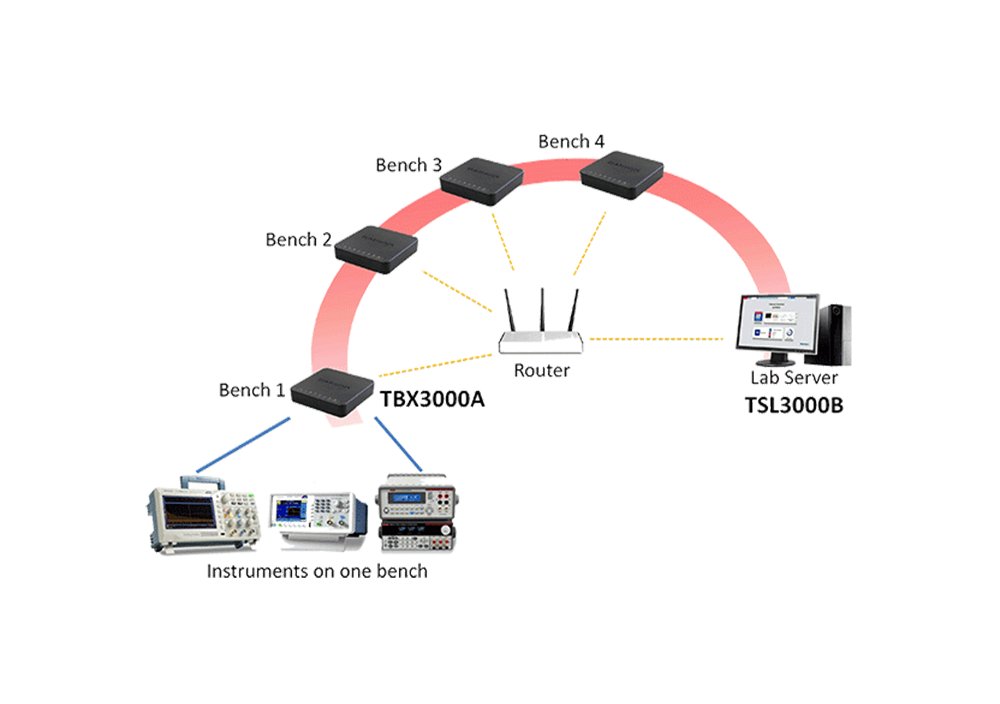

TekSmartLabâ„¢

TekSmartLab is the industry's first network-based lab instrument management solution for quickly setting up and efficiently managing basic electronics in engineering laboratories at colleges and universities.

Supports up to 600 instruments (100 test benches) on a single platform

Records and displays instrument asset information, providing better information for classroom scheduling and decisions on energy consumption or lab equipment investments

Retrieve test results wirelessly with a smart device

The centralized control of instruments enabled by the TekSmartLab solution dramatically improves the classroom and lab experience for students, instructors and lab managers.

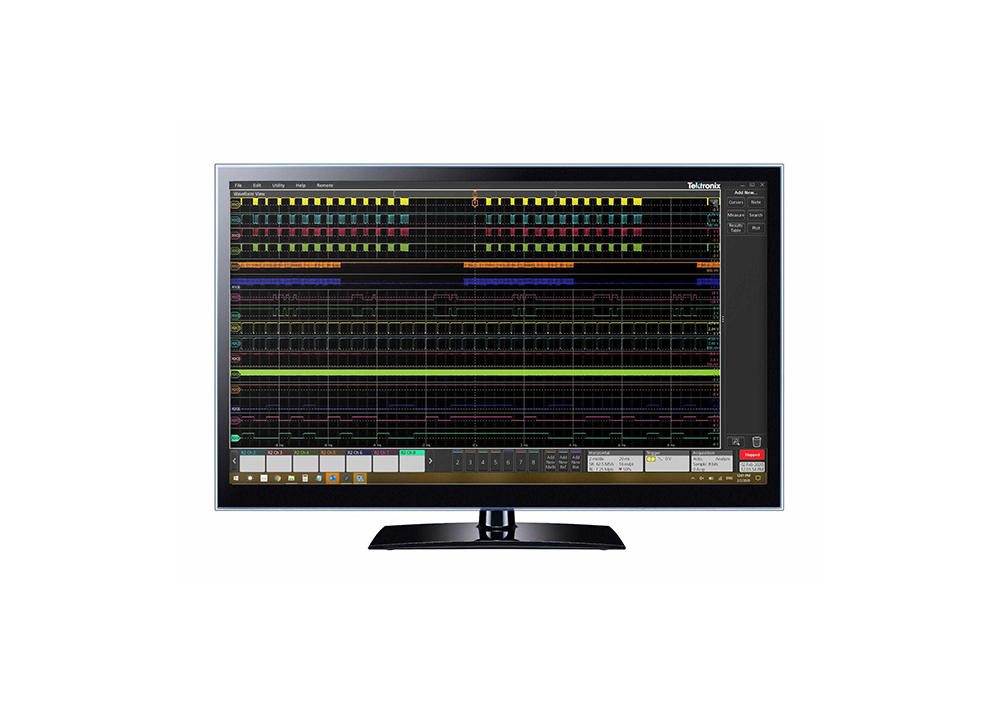

TekScope PC Analysis Software

Extend Your Teaching Capabilities From the Classroom Lab to Your Student’s PC, Notebook, or Tablet With TekScope Software.

When you need to have deeper analysis insight and a way to collaborate remotely, Tektronix TekScope PC analysis software allows you to analyze waveforms directly from your computer.

Combining remote access and control of instruments with robust analysis of up to 16 analog channels, TekScope is a powerful tool to give students practical experience with industry-standard oscilloscopes. You can even augment a basic scope by adding additional analysis functions like bus decode packages. Once you’ve analyzed your measurements, TekScope lets you easily share data with students or colleagues.

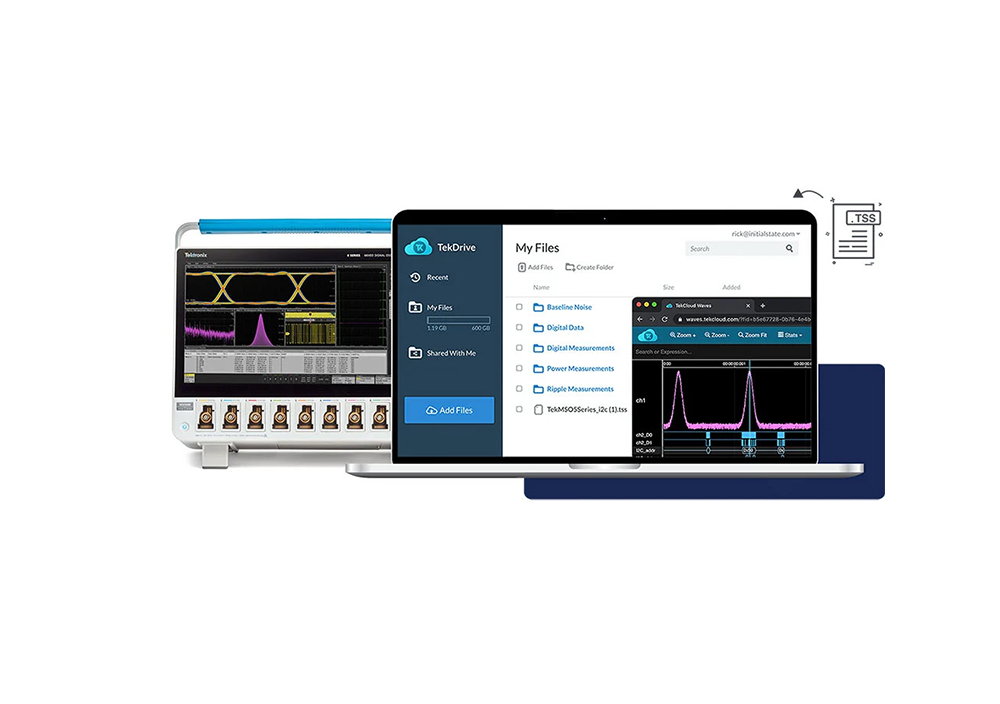

TekDrive

Using TekDrive, a collaborative T&M data workspace, users upload, store, organize, search, download, and share any file type from any connected device.

TekDrive is natively integrated on many scope models (including 4/5/6 Series) for seamless sharing and recalling of files – no USB stick required. Analyze and explore standard files, like *.wfm, *.isf, *.tss, and *.csv, directly in a browser with buttery-smooth interactive waveform explorer views. Finally, TekDrive was built as a service first, meaning scripting, API integrations, automation capabilities, and security were designed in from the start.






Featured Products


Tektronix TekDrive Software

Collaborate easily by transferring, storing, organising, managing, and sharing data and files.

Save and recall natively from supported devices and software. Preview and analyse supported waveform data types on any device – with no extra software.




Tektronix TekSmartLabâ„¢ Software

Supports up to 600 instruments (100 test benches) on a single platform

TekSmartLab is the industry's first network-based lab instrument management solution for quickly setting up and efficiently managing basic electronics in engineering laboratories at colleges and universities.



Tektronix TekScopeâ„¢ PC Analysis Software

TekScope brings the power of the oscilloscope analysis environment to the PC.

Get the analysis capability of an award-winning oscilloscope on your PC with the Tektronix TekScope Analysis Software.





The Tektronix 2 Series MSO for the Education Lab


Tomorrow’s electronics have smarter and smaller embedded designs. They have more buses to debug and validate, more complex power supply sequencing, and multiple voltage levels to test. You need a compact, versatile oscilloscope that is just as simple and convenient as any iPad or tablet. You need the Tektronix 2 Series MSO.

Key Benefits for the Education Lab
  • Common user interface
  • Offline analysis
  • Modern design
  • Kensington lock
  • Battery Operation
  • Remote Control



Bold Design

The Tektronix 2 series mixed signal oscilloscope is thin, compact, and light, unlocking additional space on your bench or in the field.

  • Intuitive touchscreen with class-leading screen-to-body ratio
  • Front and Side I/O ports allow convenient access and connectivity

Touchscreen Done Right

The high-resolution capacitive touch display offers the same award-winning interface as other Tektronix Oscilloscopes—with simplified physical controls for the most critical functions.

  • Colour-coded LED indicators for buttons and knobs
  • Membrane switches provide tactile feedback and are easy to keep clean



How to order your Tektronix 2 Series MSO


1. How many analog channels do you need?

The Tektronix 2 Series MSO is available with two or four analog channels and includes one 200 MHz 10x probe per channel.

2. Will you need any bandwidth upgrades or optional software?

When you order your scope and software upgrades together, our calibration lab will take care of the setup so that your new 2 Series is ready for action as soon as it arrives.

Bandwidth Upgrades:

  • 100MHz
  • 200MHz
  • 350MHz
  • 500MHz

Additional Software Options:

  • 50 MHz Function Generator
  • 4-bit Digital Pattern Generator
  • Protocol Analysis I2C, SPI, UART, CAN, CAN-FD, LIN, SENT














MSO22 (2-channel)


  • 2 analog channels
  • 70 MHz bandwidth (upgradeable)
  • 2.5GS/s sample rate
  • 10Mpts record length
  • Power cord and AC/DC power brick
  • 200 MHz 10x Probes 1 ea per channel
  • 1-year Standard Warranty



MSO24 (4-channel)


  • 4 analog channels
  • 70 MHz bandwidth (upgradeable)
  • 2.5GS/s sample rate
  • 10Mpts record length
  • Power cord and AC/DC power brick
  • 200 MHz 10x Probes 1 ea per channel
  • 1-year Standard Warranty
