Electronic Fundamentals Bench for University Engineering Labs

Designing, developing & testing new technology all starts with understanding the basic fundamentals of circuit design. The bench equipment offered for this lab incorporates easy to use oscilloscopes, signal generators, digital multimeters and power supplies to give confidence to the student without overwhelming them with advanced features not needed at this time.
Electronic Fundamentals Bench Overview


Tektronix Fundamentals Bench

Summary
Tektronix TBS1000C Series Oscilloscope or Tektronix 2 Series MSO24
Tektronix AFG1022 Arbitrary Function Generator
Keithley 2110-240 Digital Multi Meter
Keithley 2231A-30-3 3 Channel Power Supply

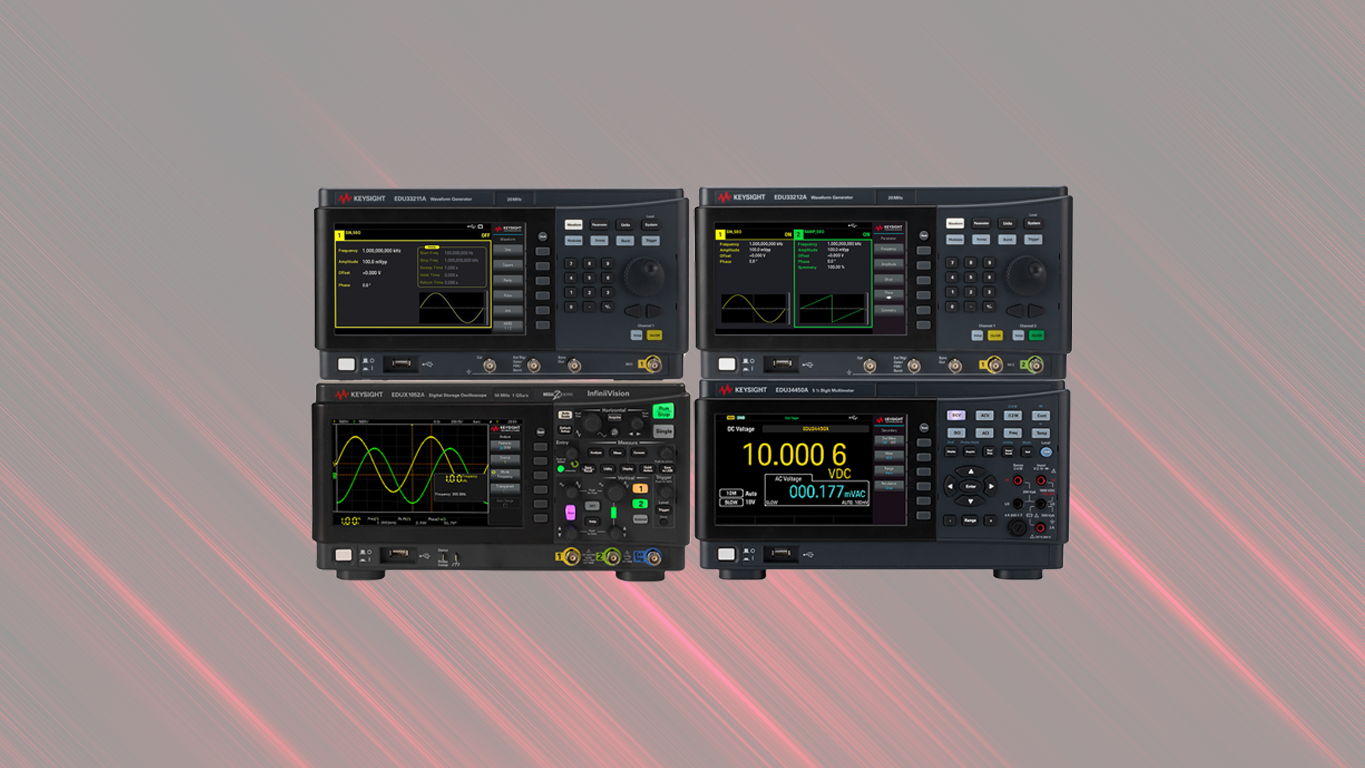

Keysight Fundamentals Bench

Summary
Keysight EDUX1052A Oscilloscope
Keysight EDU33212A Waveform Generator
Keysight EDU34450A Digital Multimeter
Keysight EDU36311A DC Power Supply
Tektronix Fundamentals Bench

Manufacturer
Product
Description
Tektronix
TBS1052C Series Oscilloscope
50 MHz frequency range , 2 Analog Channels
Tektronix
AFG1022 Arbitrary Function Generator  Â
25 MHz bandwidth, 2 Analog Channels
Keithley
2110-240 Digital Multi Meter
5.5 Digit
Keithley Â
2231A-30-3 3 Channel Power Supply Â
30V Maximum Voltage
Electronic Fundamentals Bench Featured ProductsÂ

Tektronix TBS1000C Series Oscilloscope
The TBS1000C Series Digital Storage Oscilloscope offers affordable performance in a compact design....

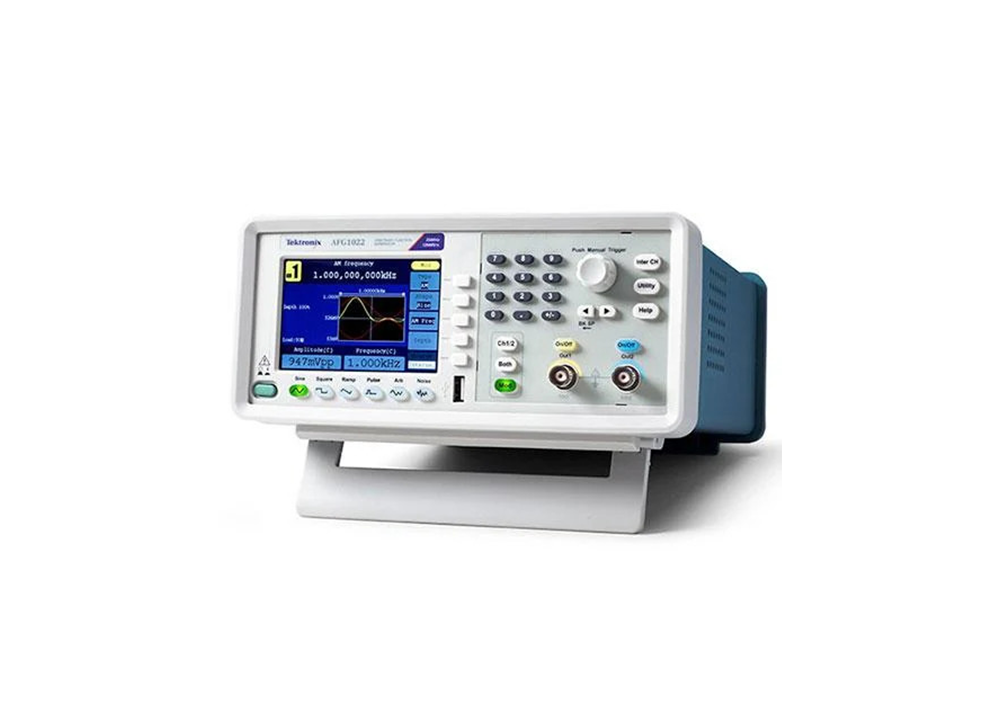

Tektronix AFG1022 Arbitrary Function Generator
The AFG1022 Arbitrary Function Generator provides a waveform generation tool with the best price-performance...

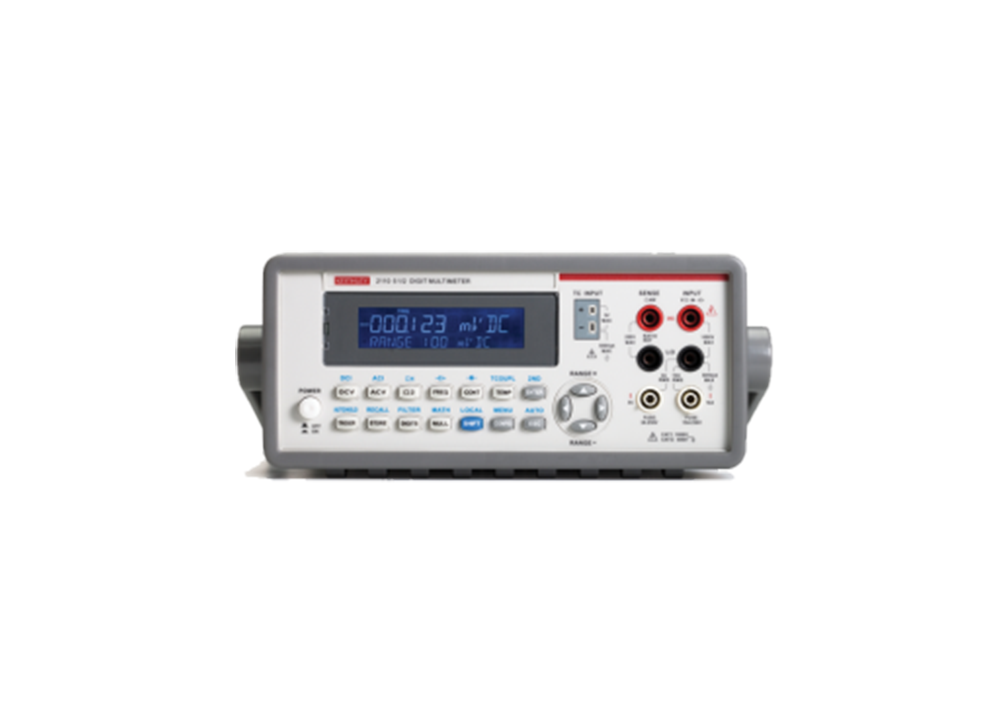

Keithley 2110-240 Digital Multi Meter
This general purpose DMM offers an unbeatable value for production, R&D, and test engineers, scientists, and students....

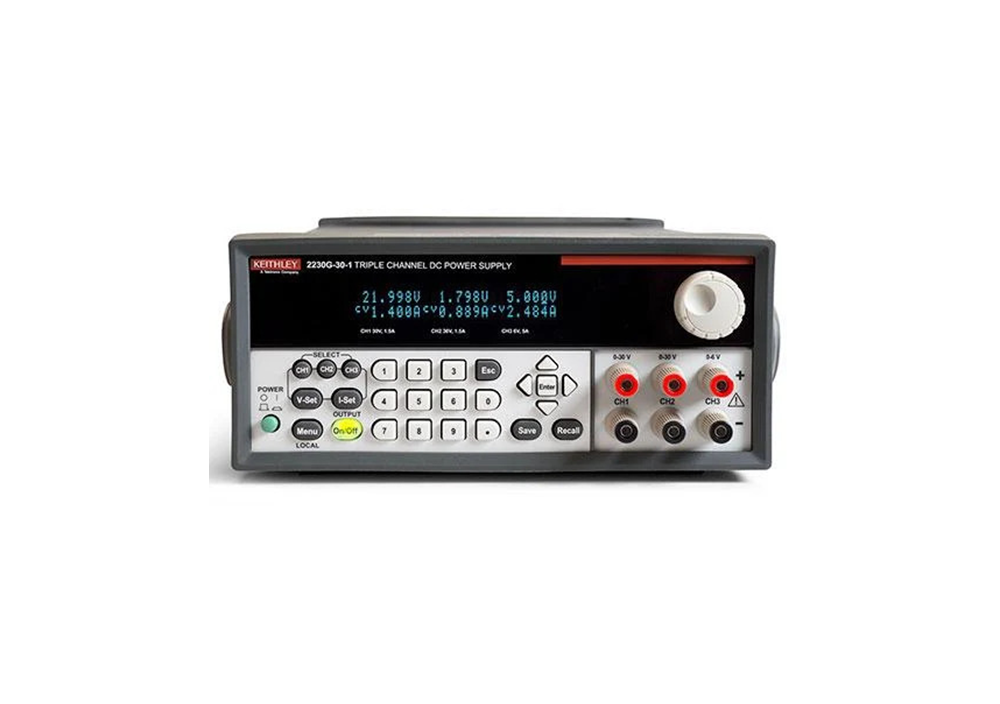

Keithley 2231A-30-3 3 Channel Power Supply
The Model 2231A-30-3 Triple Channel DC Power Supply can output a total of 195W of power....
Keysight Fundamentals Bench
Manufacturer
Product
Description
Keysight
EDUX1052A Oscilloscope
50 MHz, 2-channels
Keysight
EDU33212A Waveform Generator
20 MHz, 2-channel
Keysight
EDU34450A Digital Multimeter
5.5 digit
Keysight
EDU36311A DC Power Supply
Combine Triple Outputs with Powerful Software for Deeper Insights
Electronic Fundamentals Bench Featured Products

Keysight EDUX1052A Oscilloscope: 50 MHz, 2 Analog Channels
Keysight's InfiniiVision 1000 X-Series oscilloscopes are engineered to give you quality, industry-proven technology at unbelievably low prices.

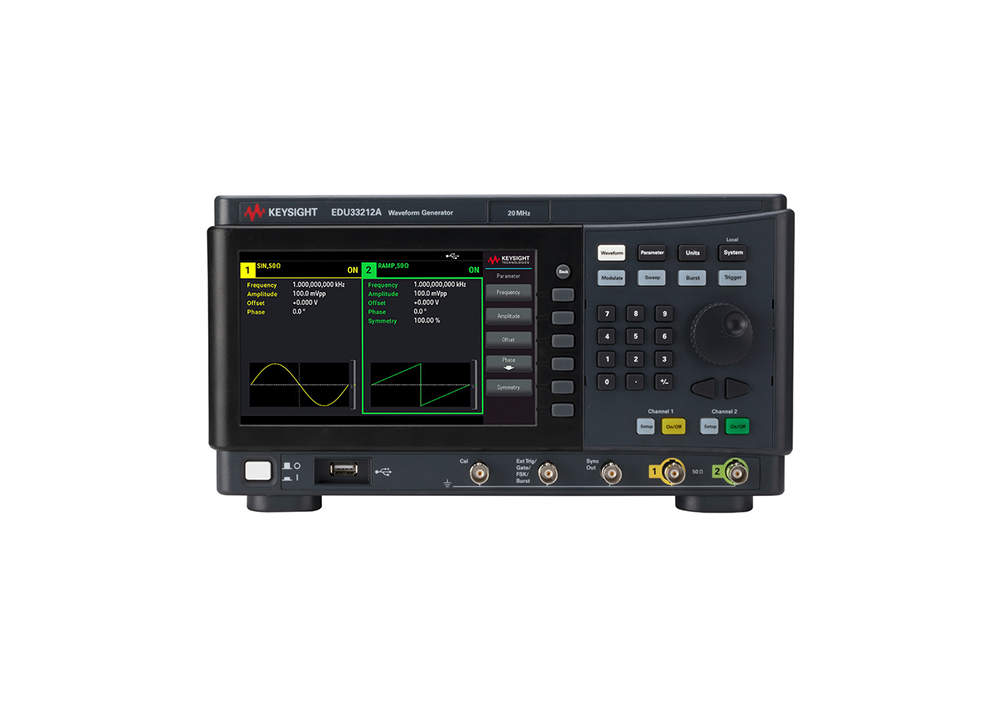

EDU33212A Waveform Generator
The Keysight EDU33210 Series function / arbitrary waveform generators offer the standard signals and features you expect — such as modulation, sweep, and burst.

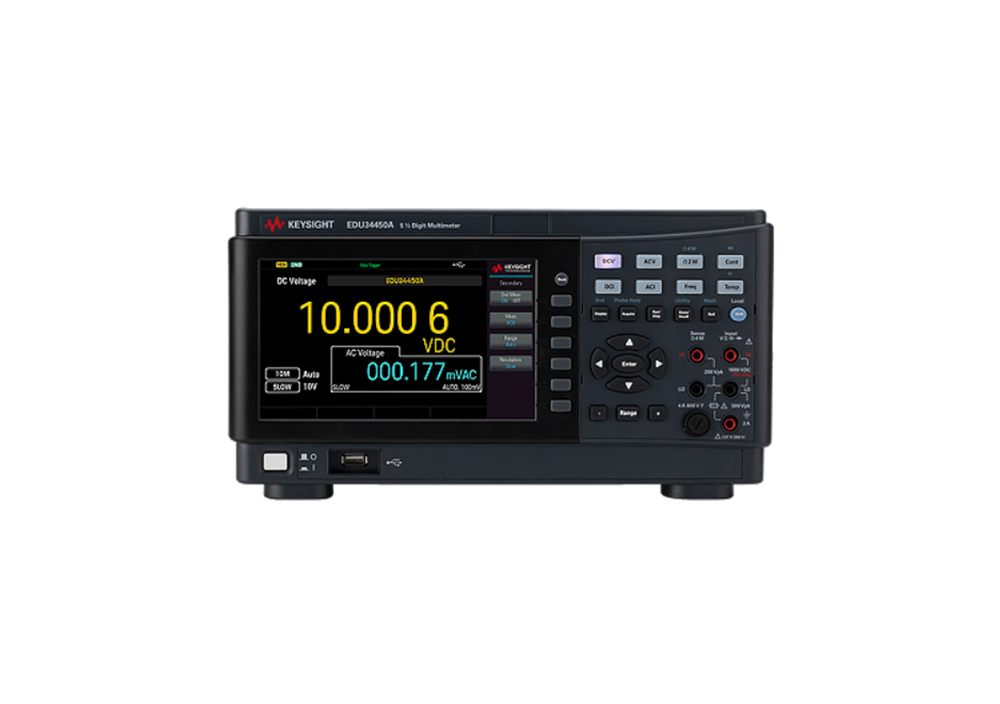

EDU34450A Digital Multimeter
The Keysight EDU34450A is a modern digital multimeter (DMM) designed for bench applications. It measures a broad range of input signals.

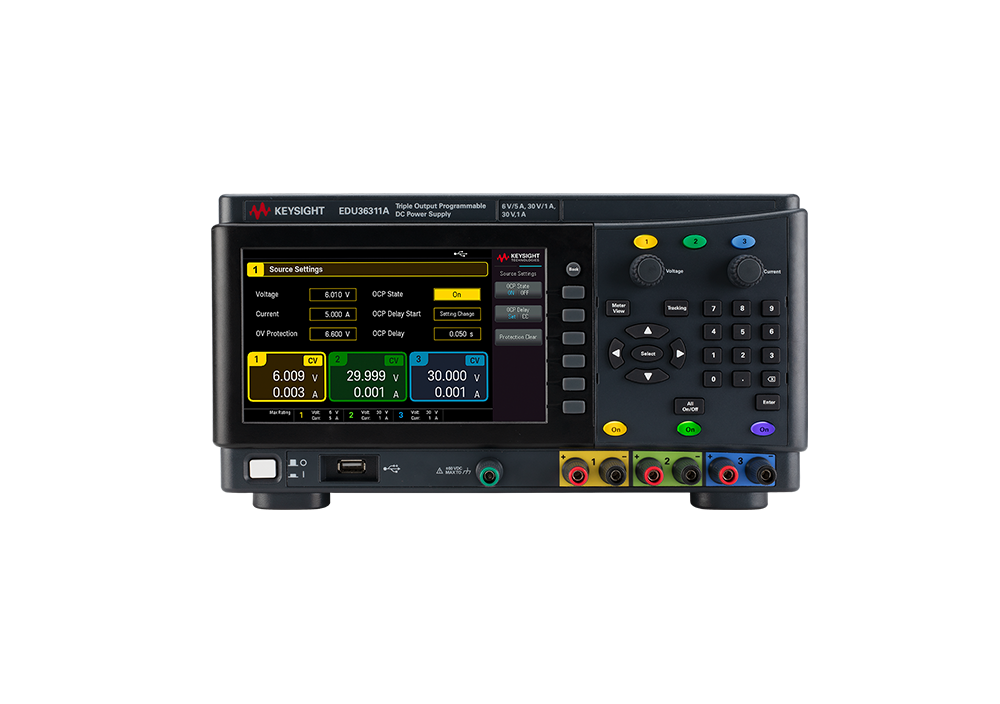

EDU36311A DC Power Supply
The Keysight Smart Bench Essentials (SBE) Series is a set of four unique instruments with PathWave BenchVue application software to connect, control, and capture measurement data.
