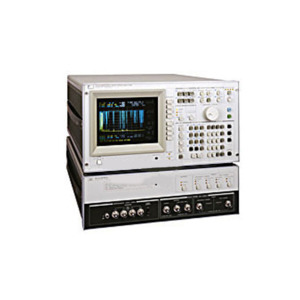

Keysight 4194A Impedance/Gain-Phase Analyzer
Part #11433.9
Condition:Used
MFG #4194A
Certified Pre-Owned
Keysight
Keysight 4194A Impedance/Gain-Phase Analyzer
Part #11433.9
Condition:Used
MFG #4194A
- Description
- Attributes
The HP 4194A impedance/gain-phase analyzer is an integrated solution for efficient measurement and analysis or go/no-go testing of components and circuits. Wide range impedance measurements from 10 Hz to 100 MHz. Flexible measurement, computation, and analysis capabilities on a color graphic display. Fully HP-IB programmable.
| Measurement | Impedance | Gain-Phase |
| Measurement Parameters | |Z|, |Y|, Phase, R, X, G, B, L, C, D, Q | Amplitude (Ratio, Absolute),Phase, Group Delay |
| Test Frequency | 100 Hz to 40 MHz (1 mHz res.) | 10 Hz to 100 MHz (1 mHz res.) |
| Osc level | 10 mV to 1 Vrms (*1) | -65 dBm to +15 dBm |
| DC Bias | 0 to ±40V, 10 mVres. | n/a |
| Sweep Parameters | Frequency, Osc Level, DC Bias | Frequency, Osc Level |
| Measurement Range | 0.1 mΩ to 1.6 MΩ ±180° | -107 dBm to +15 dBm, ±180° |
| Basic Accuracy | ±0.17% of reading | ±0.1dB, ±0.5° |
| Measurement Resolution (max) | 0.1 mΩ | 0.001 dB, 0.01° |
| Measurement Speed (*2) (>= 30 kHz) | 4.5 ms per point | 4.0 ms per point |
| Display | 7.5-inch color CRT | |
| Display Mode | Rectangular, Table | |
| Display Control | Autoscale, Superimpose,Storage, Phase Scale Expansion | |
| Analysis | Marker, Line-Cursor, Equivalent Circuit (approximate and simulate), Arithmetic Operation and Data-register Manipulation | |
| Program | Auto Sequence Program, HP-IB Remote | |
*1. 10 mV to 0.5 mV rms at >= 10 MHz
*2. Measurement speed is reference data only
