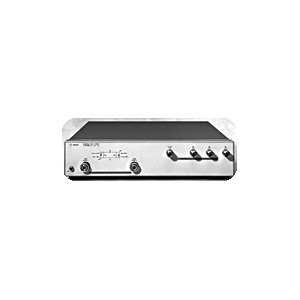

S-Parameter Test Set 100kHz - 500MHz, 50Ohm Frequency range: 100 kHz to 500 MHz Directivity port 1 & 2: 100 kHz to 300 kHz: >30 dB 300 kHz to 200 MHz: >40 dB 200 MHz to 500 MHz: >35 dB Port match R, A, B, RF IN: >20 dB Switch repeatability: +/- 0.03 dB Source match: 100 kHz to 300 MHz: >15 dB 300 kHz to 500 MHz: >20 dB Frequency response: +/- 1 dB Insertion loss: RF IN to Port 1 & 2: 13 dB RF IN to R, A, B: 19 dB Isolation between port 1 and 2: 110 dB Impedance (port 1 & 2, RF IN, R, A, B): 50 ohms Connectors: Port 1 & 2: 7 mm (50 ohms), 50 ohm type-N (f) (option 001) RF IN, R, A, B: 50 ohms type-N (f) Max. input level: +20 dB Dimension: 432 x 90 x 495 mm Weight: 5.7 kg
