This series of broadband noise sources has been designed to cover the majority of measurement applications with a range of frequencies, Excess Noise Ratio (ENR) and coaxial connector types.

Connector option must be specified at time at time of order

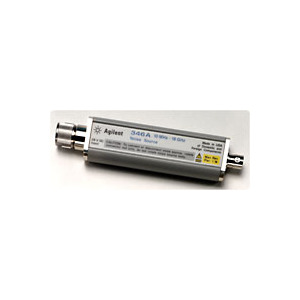

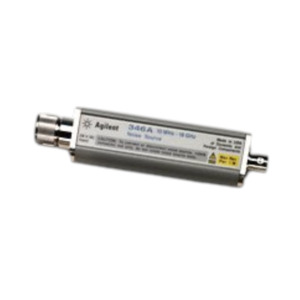

346A

• Frequency range: 10 MHz to 18 GHz
• Nominal ENR 6 dB
• VSWR: < 1.3:1
• Connectors: BNC (f) input bias / 3.5 mm (m)

346B

• Frequency range: 10 MHz to 18 GHz
• Nominal ENR 15 dB
• Option H01 for high ENR (21 dB typical)
• Option H42 for measuring Direct Broadcast Satellite (DBS) low noise block converters
• VSWR: < 1.3:1
• Connectors: BNC (f) input bias / 3.5 mm (m)

346C

• Frequency range: 10 MHz to 26.5 GHz
• VSWR: < 1.35:1
• Connectors: BNC (f) input bias / 3.5 mm (m)
• Option K01 is 1 to 50 GHz with a 2.4 mm coaxial connector

Connector option must be specified at time at time of order
