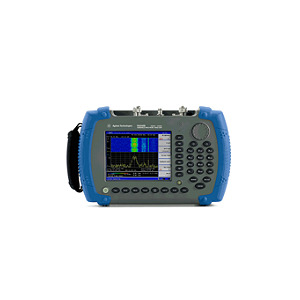

Keysight N9340B-PA3/TG3 Handheld Spectrum Analyzer, 3 GHz, Preamplifier, Tracking Generator

Part #16806.33

Condition:Used

MFG #N9340B-PA3/TG3

Keysight N9340B-PA3/TG3
Certified Pre-Owned
Keysight
Keysight

Keysight N9340B-PA3/TG3 Handheld Spectrum Analyzer, 3 GHz, Preamplifier, Tracking Generator

Part #16806.33

Condition:Used

MFG #N9340B-PA3/TG3

£
£
Certified Pre-Owned

Handheld Spectrum Analyzer 3GHz, options: PA3=3GHz preamplifier TG3= 3GHz tracking generator The N9340B handheld spectrum analyzer (HSA) puts the speed and performance of spectrum analysis in the hands of your field engineers. It provides powerful features for field applications. Plus, the HSA's superior performance gives you confidence in field test results while the optimized user interface enhances field productivity. Creates reliable, accurate, and detailed picture of your communication system Provides superior sensitivity Tailors to application-specific test needs with powerful optional features Spectrum analyzer: Frequency range: 9 kHz to 3 GHz Displayed average noise level (DANL) : -144 dBm Amplitude accuracy: +/- 1.5 dB Sweep time for 3 GHz full span: < 0.1 s Tracking generator (TG): Frequency range: 5 MHz to 3 GHz TG output level: -25 to 0 dBm, 1 dB step Measurements: High-accuracy power measurement with Agilent U2000 Series USB power sensors Spectrum monitor with spectrogram display, record and playback AM/FM and ASK/FSK modulation analysis AM/FM IBOC spectrum analysis and xDSL interference analysis HSA Instrument Attributes: Battery life: 4 hours Weight: 3.2 kg or 7 lbs Operating temperature: -10 to +50 ºC (14 to 131 ºF) Option PA3: Provides a preamplifier to enhance the analyzer's ability to see small signals. Frequency range: 1 MHz to 3 GHz Gain: 20 dB nominal Displayed average noise level with preamp: -144 dBm typical (500 MHz) Option TG3: The N9340B equipped with Option TG3 can be used as a scalar network analyzer. This feature is used in RF components test, such as frequency response and gain/loss. Provides RF Source for Scalar Network Analysis: Frequency range: 5 MHz to 3 GHz Output power: -25 to 0 dBm N-type female connector, 50 ohm impedance VSWRL < 2.0:1

Brand: Keysight
£
£
Certified Pre-Owned
