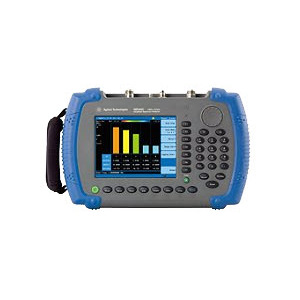

Handheld Spectrum Analyzer 9kHz-20GHz, Opt.: P20 = Preamplifier 1MHz-20GHz and TG7 = Tracking Generator 5MHz-7GHz The Agilent/HP (now Keysight) N9344C is Handheld Spectrum Analkyzer (HSA) with a bandwidth from 9 kHz to 20 GHz and is MIL PRF 28800 Class 2 compliant. Spectrum Analyzer: Frequency range: 9 kHz to 20 GHz Displayed average noise level (DANL): -144 dBm Amplitude accuracy: ±1.3 dB Sweep time for 20 GHz full span: < 0.95 s Tracking Generator: Frequency range: 5 MHz to 7 GHz Output level: -20 to 0 dBm, 1 dB step Built-in GPS receiver and GPS antenna Measurements: Channel scanner measures up to 20 channels simultaneously Spectrum monitor with spectrogram display, record, and playback Peak and average power measurement with Agilent U2020 X-Series and U2000 Series USB power sensors AM/FM/ASK/FSK modulation analysis and time-gated spectrum analysis Option P20 = preamplifier, 1 MHz to 20 GHz: Gain: 15 dB nominal DANL with preamp: -151 dBm typical (18 GHz), normalized to 1 Hz Option TG7 = Tracking Generator, 5 MHz to 7 GHz: Output power: -30 to 0 dBm N-type female connector, 50 ohm impedance VSWR < 2:1, nominal
