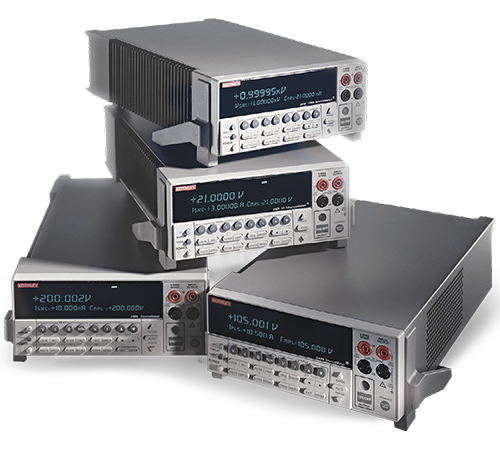

Keithley 2410 High‑Voltage SourceMeter® SMU (1100 V, 1 A, 20 W) with GPIB Interface

Key Specifications

• Max source/measure voltage: 1100 V

• Max source/measure current: 1 A

• Maximum output power: 20 W

• Measurement resolution: 6½ digits

• Operation: Four‑quadrant source and sink

• Interfaces: GPIB, RS‑232, Keithley Trigger Link

Key Applications

• Semiconductor and discrete device I‑V characterization

• High‑voltage passive and active component testing

• Materials, sensor, and dielectric research

• Reliability and stress testing

• Automated production test systems

The Keithley 2410 High‑Voltage SourceMeter® SMU is engineered for test applications that demand accurate sourcing and measurement up to 1100 volts and 1 amp. By integrating voltage and current sourcing with high‑resolution measurement in a single instrument, the 2410 simplifies test setups while delivering repeatable, low‑noise results.

The instrument supports full four‑quadrant operation, allowing it to source and sink both voltage and current. This flexibility makes the 2410 suitable for a wide range of use cases, including semiconductor device characterization, high‑voltage component testing, materials research, and reliability analysis. Engineers can configure the unit as a voltage source, current source, voltmeter, ammeter, or ohmmeter, reducing the need for multiple standalone instruments.

Fast measurement throughput (up to 1700 readings per second at 4.5 digits) enables efficient data collection in both bench‑top experiments and automated test systems. Support for 2‑, 4‑, and 6‑wire sensing improves measurement accuracy when testing low‑resistance or high‑voltage devices. Built‑in pass/fail comparison and digital I/O simplify sorting, binning, and system automation.

When purchased from TestEquity, the Keithley 2410 is backed by value‑added services such as calibration, rental programs, and certified pre‑owned alternatives—helping you deploy the right solution with confidence throughout the instrument’s lifecycle.

In The Box

• Model 8605 Test Leads

• LabVIEW Software Driver (downloadable)

• LabTracer Software (downloadable)

Frequently Asked Questions (FAQ)

1) What is the Keithley 2410 SourceMeter used for?
The Keithley 2410 is used for precision voltage and current sourcing and measurement in applications such as semiconductor device characterization, high‑voltage component testing, and materials research.

2) What is the difference between the Keithley 2410 and 2400?
The Keithley 2410 supports much higher voltage levels (up to 1100 V), making it better suited for high‑voltage testing compared to the Keithley 2400.

3) Can the Keithley 2410 source and measure at the same time?
Yes. The 2410 is a four‑quadrant SourceMeter SMU and can simultaneously source and measure voltage or current.

4) Does TestEquity offer calibration or service for the Keithley 2410?
Yes. TestEquity offers calibration services and access to rental or certified pre‑owned options where available.
