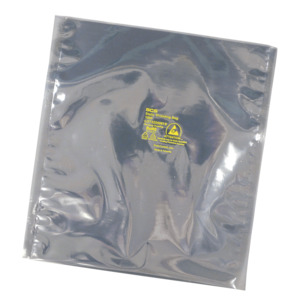

SCS 10023 Static Shield Bag, ESD, Metal-In, Open Top, 2"X3", 100/Pkg, 1000 Series

Part #295ST1023

MFG #10023

SCS 10023
SCS
SCS

SCS 10023 Static Shield Bag, ESD, Metal-In, Open Top, 2"X3", 100/Pkg, 1000 Series

Part #295ST1023

MFG #10023

POA(Excl. VAT)
  • Metal-In Film Laminate 0.0028” thick (2.8 mil). Protects ESD sensitive contents from electrostatic fields and electrostatic discharges (ESD)
  • <10 nJ Discharge Shielding Energy Limit Test per ANSI/ESD STM11.31. Meets ANSI/ESD S20.20 and ANSI/ESD S541 requirements for ESD shielding packaging inside and outside an ESD Protected Area (EPA)
  • Dissipative Inner and Outer Surfaces Rs 1 x 10 ⁴ to <1 x 10 ¹ ¹ ohms per ANSI/ESD STM11.11 and Static Control Bag ANSI/ESD S11.4 Level 3. Allows bag to be used throughout an ESD Protected Area and grounded when placed on a grounded surface or handled by a grounded operator
  • Printed with ESD Protective Symbol and Lot Code Information. Meets the requirements of ANSI/ESD S541 for quality control purposes
  • Lead-free RoHS 2, REACH and Conflict Minerals Compliant
  • Made in the United States of America

Metal-In Film Laminate 0.0028 in thick (2.8 mil)
Protects ESD sensitive contents from electrostatic fields and electrostatic discharges (ESD)

<10 nJ Discharge Shielding Energy Limit Test per ANSI/ESD STM11.31
Meets ANSI/ESD S20.20 and ANSI/ESD S541 requirements for ESD shielding packaging inside and outside an ESD Protected Area (EPA)

Dissipative Inner and Outer Surfaces Rs 1 x 104 to <1 x 1011 ohms per ANSI/ESD STM11.11 and Static Control Bag ANSI/ESD S11.4 Level 3
Allows bag to be used throughout an ESD Protected Area and grounded when placed on a grounded surface or handled by a grounded operator

Printed with ESD Protective Symbol and Lot Code Information
Meets the requirements of ANSI/ESD S541 for quality control purposes

Made in the USA

BrandSCS
ColorSilver
ESD SafeYes
Heat SealableYes
Length3"
MaterialPolyester/Polyethylene/Metal
Opening TypeOpen Top
Package Quantity100 Per Pkg.
Product TypeBags & Pouches
Puncture Strength12 lbs
RoHS ComplianceYes
Series1000 Series
Size W x L2" x 3"
Surface Resistivity1 x 10⁴ to < 1 x 10¹¹ Ohms
Temperature Range300°F - 375°F, 149°C - 190°C
Tensile Strength4600 psi
Thickness2.8 mil
TypeMetal-In Static Shielding Bag
Video1095509
Warranty1 Year
Width2"
