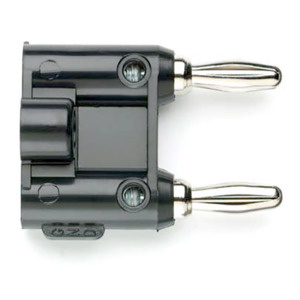

Model MDP Double Banana Plug

Highlights:

• Simplified attachment of cables or small components by means of set screws
• For test versatility, banana plugs can be vertically stacked
• Banana plug spring is Beryllium Copper for long insertion life
• Model 4898 features Polyphenylene Sulfide for high temperature operation
• Model 4892 features gold plating for superior electrical connection
• Set screws secure wire. Simplifies cable construction or component mounting. Accepts cables to 0.22in (5.59mm) dia. max., (18-22 AWG wire).

Materials:

• Banana Plug Body: MDP & 4898: Nickel Plated Brass
• Model 4892: Gold Plated Brass
• Spring: MDP & 4898: Nickel Plated Beryllium Copper
• Model 4892: Gold Plated Beryllium Copper
• Insulation: MDP & 4892: Polypropylene
• Model 4898: Polyphenylene Sulfide
• Set Screws: Zinc Plated Steel, 8-32 Single

For a reliable plug or jack when making your own test set, Pomona Electronics’ selection is designed to meet demanding electrical characteristics. Nickel-plated plugs feature brass bodies and one-piece heat-treated beryllium copper springs with nylon or ABS insulation. Choose Pomona for the reliable and dependable connections your work demands.
