E36731A Battery Emulator

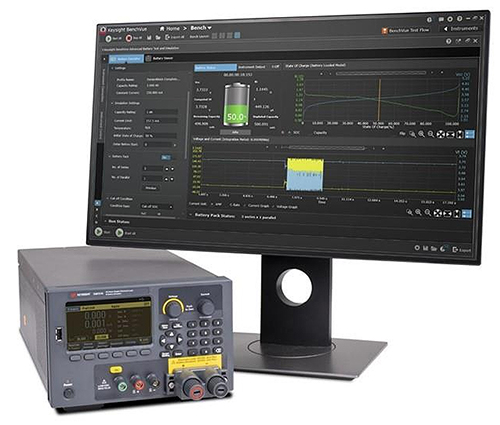

The E36731A Battery Emulator is designed to operate with Keysight BV9211B Pathwave BenchVue advanced battery emulation software. This combination allows you to easily profile batteries and perform battery emulation, enabling you to perform battery drain analysis at different charge levels. This capability allows you to quickly optimize your device for better battery life. You can also create a custom charging and discharging sequence at various test conditions. The software can run one thousand cycle operations to determine the aging effects and the impact on battery reliability.

Features

• 1 Channel
• Measurement Accuracy 14-bit resolution in uA range
• 1000 Ohm max programable resistance range
• Bench friendly form factor
• USB and LAN (LXI Core) as a standard interface
• 4.3-inch LCD color display
• Front output terminal, including sense and ground
• Individual knobs for voltage and current
• Power supply and electronic load in One Box

Intuitive and Easy-to-Use Interface and Flexible IO Connectivity

The E36731A features a 4.3-inch LCD color display that presents voltage and current readings for all channels in various view modes. Its knobs, interface windows, and binding posts are color-coded to simplify setup and minimize connection mistakes. For precise control, it includes two rotary encoder knobs for voltage and current adjustments, along with an instrument keypad for swift configuration changes. Additionally, the rear output terminals make wiring more convenient, making it well-suited for both bench and system setups. The E36731A ships standard with LAN and USB. GPIB is available as an option.

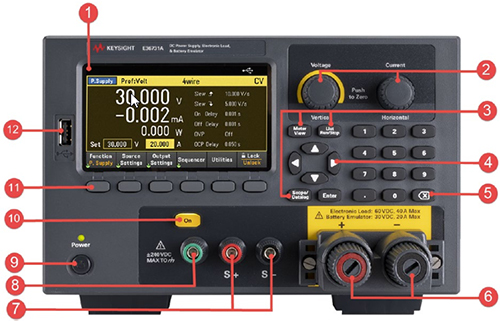

Front Panel Features

1. 4.3-inch LCD color display
2. Voltage and current knobs
3. Meter view, list run/stop, and scope/datalog keys
4. Navigation keys
5. Numeric keypad
6. Detachable binding post for output terminals
7. Sense terminal
8. Earth ground reference
9. On/standby key and LED indicator
10. Output on/off key
11. Softkeys
12. USB port

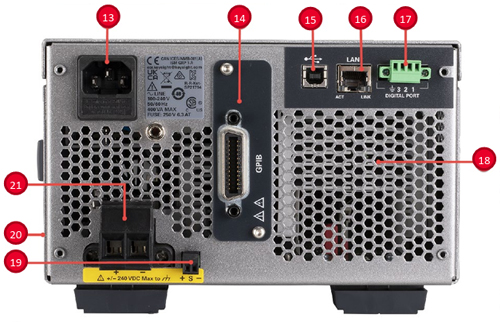

Rear Panel Features

13. AC inlet
14. GPIB port (Option EL34GPBU only)
15. USB port (rear)
16. LAN port
17. Digital I/O terminal port
18. Fan ventilation hole
19. Sense terminals (rear)
20. Kensington security slot
21. Output terminals (rear)

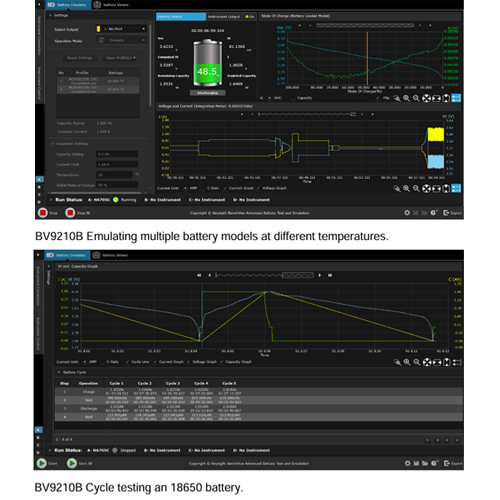

PathWave BenchVue Advanced Battery Test and Emulation Software

• Tests and emulates batteries up to 200kW and up to 2000V (model dependent)
• 4 modes of operation: emulation, profiler, discharge/charge, and cycler
• Creates custom battery models
• Controls up to four instruments at a time
• Includes API functions for integrating into your programming environment
• Provides advanced control capabilities - capacity rating, state of charge, constant or dynamic level selection, pulse width control
• Measures voltage and current simultaneously with its built-in digitizer
• Captures voltage, current, and capacity accurately from seconds up to days
• Creates custom dynamic loading characteristics for discharging
• Imports battery models
• Exports measurement data
• Provides a graphical view of the battery model
• Provides customizable battery protection parameters

The optional BV9210B software is available for download with a 7-day free trial. After the seven-day trial period, an extension trial is available for an additional 30 days once you enter your credentials. To purchase a license, choose the BV9211B single power supply option or the BV9210B multiple power supply option. The purchased license resides on the PC or network, depending on the license type.

What's in the Box

• E36731A Battery Emulator
• AC power cord (based on destination country)
• Certificate of calibration
• 1x detachable front output connector
• 1x rear output connector
• 1x rear remote sense connector
• 1x digital IO connector
