NetAlly EXG300C-LR10G-KT-X2 Dual Tri-Band EtherScope nXG 10G Performance Test Kit

The EtherScope nXG Portable Network Expert is a versatile, all-in-one handheld device designed to streamline network analysis. It empowers engineers and technicians to work more efficiently, handling everything from network deployment to maintenance and documentation as Wi-Fi and Ethernet access networks evolve. With its user-friendly interface, deep visibility, and remote access capabilities, engineers can effectively collaborate with field technicians, speeding up troubleshooting and problem resolution.

Features

• Test, verify, and troubleshoot technology upgrades, NBASE-T, 10G and Wi-Fi networks with advanced testing apps and purpose built hardware
• Verify up to 10G Ethernet link performance for critical servers, uplinks and key end devices, and validate Wi-Fi network performance
• Supports 2.4 GHz, 5 GHz, 6 GHz spectrum analysis with the optional NXT-2000 Portable Spectrum Analyzer adapter.
  • Full Tri-Band (across entire 6GHz band)
  • Partial Tri-Band (only certain channels in the 6 GHz band)
  • Dual Band Only (where operation in the 6 GHz band is not allowed)
  *Wi-Fi regulatory compliance implementation of the 6 GHz spectrum varies by country.
• Empowers technicians who may not have access to network management systems or other engineer-level tools, to assess and document complex network deployments with multiple VLANs and Wi-Fi SSIDs
• Enables remote engineers to troubleshoot and collaborate with on-site technicians to solve problems at remote sites, saving time and cost of travel
• Seamlessly consolidate, analyze, manage field test data, and integrate with network management systems via Link-Live collaboration, reporting, and analysis platform
• Automatically discover and instantly generate a topology map of your wired and Wi-Fi networks using Link-Live cloud service; speeds troubleshooting and keeps network documentation up-to-date. Exports to Visio.
• Approximately 8 GB available for storing test results and user applications
• Supports Micro SD card storage - up to 32GB supported
• 5-inch color LCD display with capacitive touchscreen (720 x 1280 pixels)
• Interfaces RJ-45, USB Type-A and Type-C
• Rechargeable lithium-ion battery pack, typical operating life is 3-4 hours

All-in-One Platform Addresses Multiple Technologies

• Smart handheld network tester that verifies, discovers, maps, and troubleshoots Wi-Fi and Ethernet network infrastructures
• Built-in Bluetooth v5/BLE radio for connectivity and conducting BT/BLE site surveys

Native 2x2 Wi-Fi 6/6E radio that supports:

• 802.11a/b/g/n/ac/ax Wi-Fi network connectivity
• Analysis of SSIDs, BSSIDs, channel, client devices, and interference sources

Ethernet port supports:

• 10/100Mbps to 1/2.5/5/10Gbps
• 802.3af/at/bt PoE load testing up to 90W

Wired + Wi-Fi Network Discovery, Mapping, Analysis, and Security Audits

Instantly see what is on the network and where it is connected, by switch, slot and port number. Quickly investigate and locate “suspect” devices and identify problems associated with device misconfigurations.

• Discover network devices across multiple VLANs and Wi-Fi SSIDs through four Wi-Fi and Ethernet interfaces upon power up
• Discovery Difference analysis in Link-Live exposes possible security risks in the network infrastructure by showing changes in connected devices
• Powerful filter and sort function with automatic problem detection identifies issues such as:
  • Duplicate IPs, congested switch ports, and oversubscribed Wi-Fi channels/SSIDs
  • Security issues, like unknown switches, access points with open authentication
• Path Analysis shows the switch/router path to any connected device
• Batch authorization workflow makes it easy to identify known vs. unknown devices, enabling “who’s on my network” auditing

Native 6 GHz Support and Wi-Fi 7 Visibility

Wi-Fi 6/6E has transformed WLAN validation and troubleshooting, requiring updated approaches. Innovations aimed at enhancing traffic management and utilizing the 6 GHz band now enable higher throughput and improved performance in high-capacity environments. As a result, new testing and validation technologies are necessary for ensuring optimal network functionality.

• Validate Wi-Fi network performance and utilization using a native 802.11ax radio
• Gain visibility into all Wi-Fi devices, on the 2.4 GHz, 5 GHz, and 6 GHz bands*
• Enables packet captures in all 3 bands
• Diagnose new Wi-Fi mechanisms of Reduced Neighbor Reports, Preferred Scanning Channels, and multi-BSSID
• Authenticate using the latest security standard of WPA3 and Enhanced Open

*NOTE: Wi-Fi regulatory compliance implementation of the 6 GHz spectrum varies by country. EtherScope nXG models are available in three versions; see Models and Accessories for additional information.

10G Line Rate Performance Test and Packet Capture

Verify network capacity, performance and QoS, and easily capture packets for detailed application analysis.

• Simultaneously generate and measure up to eight streams of IP-based traffic through the Ethernet test port to: Load the network with up to full 10G line-rate traffic or test for packet loss, delay, and jitter
• Supports iPerf network throughout testing for Wi-Fi and Wired networks
• Capture wired or wireless traffic to PCAP files for escalation evidence or analysis, with simple - but powerful - filtering and slicing controls

Verify Complex Networks - Wired and Wireless

Test automation speeds and simplifies validation and troubleshooting - so more people can solve more problems, faster.

• Out-of-the-box AutoTest profiles for Wi-Fi and wired networks that can be customized for your network
• Execute multiple AutoTest profiles that shorten test time to verify multiple VLANs and Wi-Fi SSIDs
• Define and assign groups of targets to AutoTest profiles to verify performance using ping, TCP Connect, Web, or FTP

AirMapper Site Survey – Now with Wi-Fi 7 Visibility

The AirMapper app enables EtherScope nXG users to efficiently collect Wi-Fi and Bluetooth/BLE measurements, generating visual heat maps of key performance metrics within the Link-Live platform for collaboration and analysis. Ideal for site surveys, change validation, and performance verification, it simplifies network assessments. Link-Live enhances productivity for remote teams by allowing project leads to create, calibrate, and distribute survey projects, streamlining data collection and analysis.

• Wi-Fi and Bluetooth/BLE site surveys with a rugged handheld tester
• Automatically identify common Wi-Fi network problems using InSites intelligence analysis in Link-Live
• Easily visualize, generate reports, and share survey data through Link-Live
• Simultaneous passive and active Wi-Fi surveys gather critical site metrics and validate client experience and roaming with one survey
• Export Wi-Fi survey data to AirMagnet Survey PRO for more advanced analysis, planning and reporting

Spectrum Analysis and Interference

Identifying the source of Wi-Fi interference can be challenging without the right tools. By utilizing the optional NXT-2000 Portable Spectrum Analyzer along with either an internal omni-directional or external directional antenna, EtherScope nXG provides insight into RF interference across the 2.4 GHz, 5 GHz, and 6 GHz bands, helping assess its effect on network performance. This analysis is supported by key graphs and charts for a comprehensive view.

• Real-Time FFT: A live RF view including current, average and max readings
• Frequency Spectrum: Displays heat mapped signal density to identify recurring energy
• Waterfall: Shows energy over time to identify the periodic nature of the RF environment

Simplified Collaboration, Automated Reporting

Collaborate with staff across your organization with centralized visibility of distributed tests, speeding resolution of remote site issues.

• Link-Live collaboration, reporting, and analysis platform (cloud-based or private/ on-premise) stores test result and site data upload for automated reporting and documentation
• Simplifies report generation across media types for network deployment documentation
• Attach photos and user comments to each result, adding context for future changes and troubleshooting
• Available API enables seamless data

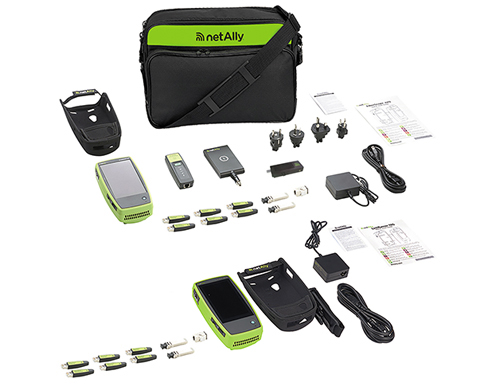

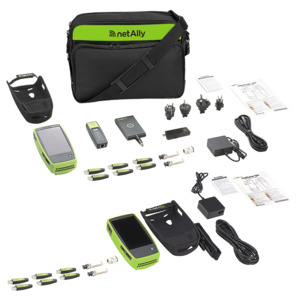

What's in the Box

EXG300C-LR10G-KT-X2 Dual Band includes:

• Qty 1 EXG-300 mainframe
• Qty 1 LR10G-200 mainframe
• Qty 2 EXG-LR10G2-HOLSTER
• Qty 1 NXT-2000 Spectrum Analyzer
• Qty 2 G3-PWRADAPTER
• Qty 2 SFP+MR-10G850
• Qty 2 SFP+MR-10G1310
• Qty 2 RJ-45 inline coupler
• Qty 1 EXT-ANT-TRIBAND
• Qty 1 TEST-ACC
• Qty 2 WIREVIEW 1-6
• Qty 2 Quick Start Guide
• Qty 1 medium softcase

*Purchase EXG-300-1YS and LR10G-200-1YS for one-year AllyCare Support or EXG-300-3YS and LR10G-200-3YS for three-years AllyCare support.
