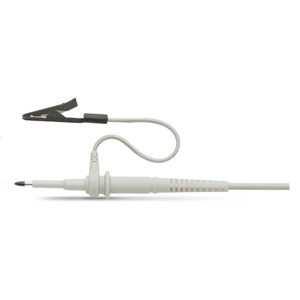

Testec TT-HF 612 Passive Oscilloscope Probe

Features and Specifications

• Input Impedance: 10 MΩ / 10 pF
• Bandwidth: 500 MHz
• Attenuation: x10
• Rise time: less than 0.7 ns
• Compensation range: 8-25 pF
• Maximum input voltage: 400 Vrms (CAT II)
• Connector: BNC
• Cable length: 1.3 meters

The Testec TT-HF 612RA is a high-frequency 2.5mm passive oscilloscope probe designed for precision measurements in demanding environments. It features a 10:1 attenuation ratio, an input impedance of 10 MΩ, and an input capacitance of 10 pF, which ensures minimal loading on the circuit under test. With a bandwidth of 500 MHz and a rise time of less than 0.7 ns, it is well-suited for capturing fast signal transitions accurately.

The probe supports a compensation range of 10–20 pF and includes a 1.3-meter cable for flexible connectivity. It can handle maximum input voltages of 500 Vrms (CAT I) and 400 Vrms (CAT II), with transient overvoltage protection up to 1500 V.

What's in the Box

• TT-HF 612 Passive Oscilloscope Probe
• Standard accessories
