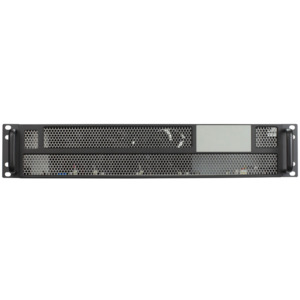

B&K Precision HMRPU180 Protection Unit, for HMR65046/HMR130023/HMR500108/HMR195027, HMRPU Series
Part #70032630
MFG #HMRPU180
B&K Precision
B&K Precision HMRPU180 Protection Unit, for HMR65046/HMR130023/HMR500108/HMR195027, HMRPU Series
Part #70032630
MFG #HMRPU180
- Description
- Attributes
- Documents
B&K Presicion - HMRPU180 Reverse Protection Unit
HMRPU Series

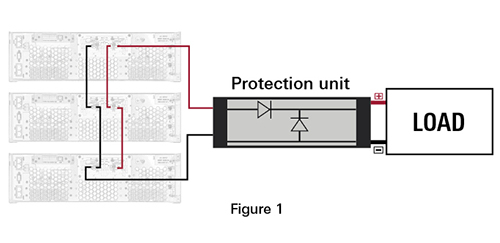

When working with motors, transformers, or other inductive loads, the HMRPU Series reverse protection units safeguard your DC power supply from reverse voltage and inductive kickback. The protection unit architecture consists of a blocking diode and free-wheeling diode (Figure 1) capable of protecting multiple power supplies connected in parallel. Compatible with B&K Precision HMR Series, MR Series, and HPS Series DC Power Supplies.
Model | HMRPU180 | HMRPU540 |
|---|---|---|
Rated Voltage | 1950 V | 1050 V |
Rated Current | 180 A | 540 A |
Power | 300 W, dissipation from diode and fuse | 800 W, dissipation from diode and fuse |
Fuse | 350 A (fast acting) | |
Brand: B&K Precision
For Use With: HMR65046, HMR130023, HMR500108, HMR195027
Series: HMRPU Series
Current Rating: 180 A
Power Rating: 300 W
Voltage Rating: 1950 V
