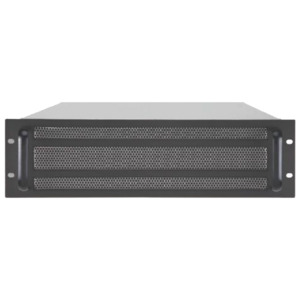

B&K Presicion - HMRPU540 Reverse Protection Unit

HMRPU Series

When working with motors, transformers, or other inductive loads, the HMRPU Series reverse protection units safeguard your DC power supply from reverse voltage and inductive kickback. The protection unit architecture consists of a blocking diode and free-wheeling diode (Figure 1) capable of protecting multiple power supplies connected in parallel. Compatible with B&K Precision HMR Series, MR Series, and HPS Series DC Power Supplies.
