Optical Fiber Probe 2-Channel, 50 Mbps

• OE 150 Optical Receiver
• Transmission range DC ... 50 Mbps
• Optical fibre connector Ø 2.2 mm
• Supply voltage 12 V / 100 mA
• Optical fibre length 1 m - 20 m
• Connector - output BNC-Stecker, 5 V HCMOS S25
• Optical Sensor Transmission range DC ... 50 Mbps
• Optical fibre connector Ø 2.2 mm
• Supply voltage 3 V ... 5 V
• Current input 30 mA

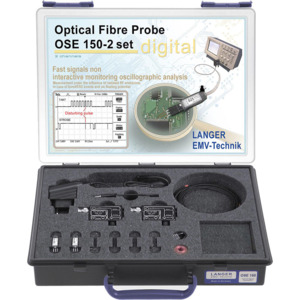

With the OSE 150-2 set it is possible to potentially free oscilloscograph digital signals under EFT/burst interference. Disturbed signals from the device under test can be easily detected. The set consists of two single sensors which are used to detect two digital signals within the device under test. It is connected via two fiber optical cables and two receivers to the oscilloscope. Inside the device under test a sensor transforms measured logical signals into light signals. Different types of sensors with different measuring ranges are available for the detection of logical signals in the device under test. The light signals are transmitted to the optical receiver via a fiber optical cable. The receiver transforms them into digital electric signals. These can be visualized with an oscilloscope or can be used to control other devices. The system is suitable for signal monitoring from an anechoic chamber, a shielded RF chamber, or in an EMC test lab. Hardand software can be EMC-optimized

In The Box

• 2x OE 150
• Optical Receiver 2x S25
• Optical Sensor (50 Mbps) 2x LWL Ø 2.2 mm 6 m
• Optical Fiber
• Single 6 m 1x NT FRI EU
• Power Supply Unit 1x OSE 150-2 acc
• Accessories 1x OSE 150-2 case
• System Case 1x Digital m
• OSE User Manual
