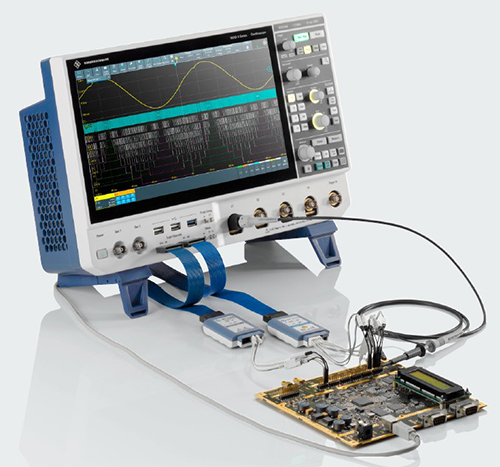

Rohde & Schwarz MXO 4 Series – MXO44-BNDL Oscilloscope Bundle

The R&S MXO 4 series is the first of a new generation of oscilloscopes that excels in both performance and value. The instruments deliver a once-in-a-decade engineering breakthrough for accelerated insight.

They have the world’s fastest real-time update rate of 4.5 million waveforms/s, meaning engineers can see more infrequent events than with any other instrument. The 12-bit ADC in the R&S MXO 4 series has 16 times the resolution of traditional 8-bit oscilloscopes at all sample rates for more precise measurements without any compromises. A standard 400 Mpoint acquisition memory on all four channels and an optional 800 Mpoint interleaved memory provide the instrument with up to 100 times the standard memory of comparable instruments.

Key Facts (MXO44):

• 1.5 GHz bandwidth

• 4 Channels

• Up to 5 Gsample/s sample rate

• 800 Mpoints Memory per channel

• 12-bit ADC at all sample rates

• 18-bit architecture with HD mode

• Precise digital trigger

Bundle Includes (MXO44-BNDL):

• MXO44 digital oscilloscope, 4 channel, 200MHz

• MXO4-B2415 1.5GHz Bandwidth upgrade

• MXO4-B6 Arbitrary Waveform Generator

• MXO4-B108 Memory upgrade 800Mpts

• MXO4-K12 Jitter Analysis

• MXO4-K31 Power Analysis

• MXO4-K36 Frequency Response Analysis

• MXO4-K500 Bus Analysis

• Serial Trigger & Decoding:

  • MXO4-K510: I2C, SPI, UART/RS-232 RS-422 / RS-485, Quad-SPI, Custom NRZ

  • MXO4-K520: CAN, CAN-FD, CAN-XL, LIN, SENT

  • MXO4-K530: ARINC-429, MIL-STD-1553, SpaceWire

  • MXO4-K550: SPMI, RFFE, I3C

  • MXO4-K560: 10BASE-T1S

12-bit ADC even at the fastest sample rates

All MXO 4 series oscilloscopes incorporate a 12-bit ADC. 12 bit vertical resolution delivers 4096 quantization levels for precise vertical sampling. This is a 16-fold improvement over 8-bit ADCs. The ADC stays in 12-bit mode all the time, even at the fastest sample rates.

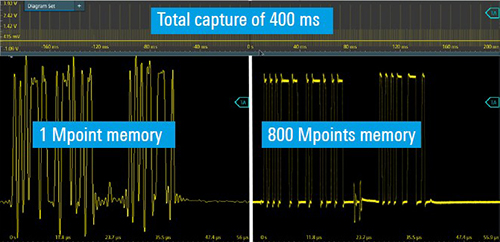

Deep memory as an insurance policy

After bandwidth and sample rate, memory depth is the most important attribute that determines an oscilloscope’s ability to handle a large range of troubleshooting tasks. More acquisition memory gives oscilloscopes the ability to capture more time. More memory enables oscilloscopes to retain the maximum sample rate and bandwidth even with slower timebase settings.

Superior User Experience

Advanced Usability, Easy Documentation, Fast Remote Control

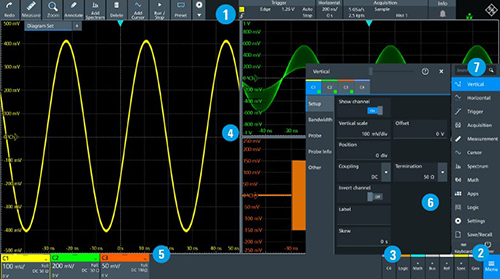

1. Toolbar

2. Main Menu

3. Keys

4. SmartGrid function

5. Signal Bar

6. Box Design

7. Search Box

In The Box:

• R&S MXO44 Oscilloscope

  • Application Bundle

• 700 MHz 10X Passive probe - 1 per channel.

• Accessories Bag

• Quick Start Guide

• Power Cord
