• For capacitive coupling clamp Burst
• To calibrate the capacitive coupling clamp SFT-415-CS and SFT 450-1 are required

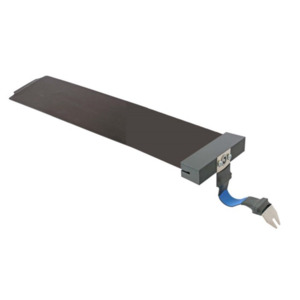

• Stainless steel conductive plate
• Fischer HV-female connector

Calibration Set for calibration of the capacitive coupling clamp acc. IEC 61000-4-4, 2012, SFT 450-1 needed for test level determination. The capacitive coupling clamp is specified in the standard IEC / EN 61000-4-4, chapter 6.4. It provides the ability of coupling the fast transients / bursts to the circuit under test without any galvanic connection to the terminals of the EUT´s ports, shielding of the cables or any other part of the EUT.

With the release of the standard IEC 61000-4-4, 2012 the capacitive coupling clamp is also to verify at their characteristics and to calibrate.

Measurement equipment that is specified as suitable to perform the calibrations defined in IEC 61000-4-4, chapter 6.2.3 (Burst generator verification) shall also be used for the calibration of the characteristics of the capacitive coupling clamp.

The following accessories are required to calibrate the capacitive coupling pliers:
SFT 415-CS and SFT 450-1
