• Nominal voltage AC: max. 240 V, 50 / 60 Hz
• Nominal voltage DC: max. 120 V
• Rated current IN at TU= 40 °C: 2 x 4A
• Series choke: 2 x 20 mH
• Coupling capacitance C: 0.5 µF
• Serial resistance R: 40 Ohm
• Access method: D1 - D2; D1 - earth; D2 - earth
• Maximum pulse voltage: 1.2/50 µs 4400 volts
• High voltage (HV) - Input: Fischer HV socket D105A039
• Input / Output coupling network: Lab jacks
• Electronics supply: 100 - 240 V AC 47 - 63 Hz, 50 VA
• Earth connection: additionally via socket on the front and rear
• Operating temperature: 0 to 40 °C
• Weight: CWG 1526-4: 4.8 kg CWG 1526-10: 10.4 kg
• Dimensions (H x W x D): 150 x 225 x 360 mm (3 HE; 42 TE)
• For two unscreened, unbalanced connection lines.

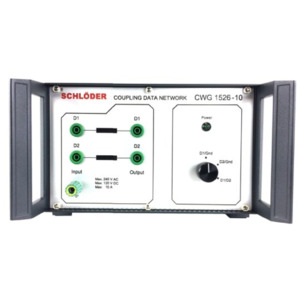

With the help of the coupling network of type CWG 1526, EMC tests (immunity tests) can be carried out on electrical consumers. These tests are based on IEC 61000-4-5 (surge test for unscreened, unbalanced connection lines). The interference signals of the CWG 1500 / CWG 2500 surge generator are superimposed on the connecting lines of the instrument under test. The coupling switch can be used to select the interference paths (D1/GND, D2/GND or D1/D2). The CWG 1526 is suitable for operation with the CWG 2500 / 1500 surge generators from Schlöder.

Scope of Delivery:
HV cable with 0.85 m length for connection to the Surge Generators: CWG 1500 / CWG 2500
