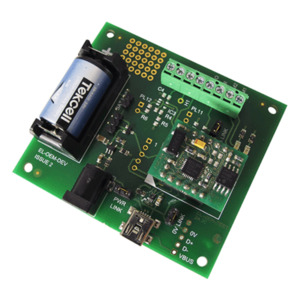

Development board for EL-OEM-3 includes EL-OEM-3, USB cable and battery

• USB interface for setup and download of data
• Bread boarding area provided
• Various power supply options

The EL-OEM-TEST is a board designed to assist in development of circuits using the EL-OEM-3 data logger. The EL-OEM-TEST features a mini-USB connector, battery socket, 5 to 24V external power supply input and development options for input signal conditioning including positions for scaling resistors and an op-amp circuit. There is also a small bread-boarding area provided. With the interface designed and tested, the required circuitry can be transferred to a product specific PCB.

In the Box

• BAT 3V6 1/2AA Battery
• CABLE USB A-MF USB Cable
• EL-OEM-3 OEM Packaged Voltage Logger
