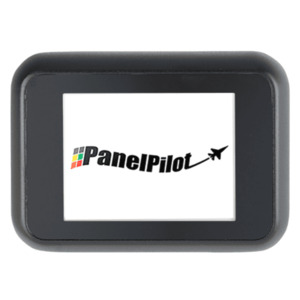

IP67 rated, 2.4" Smart Graphic Display configured for 2x 4-20mA Inputs

• 2.4” colour TFT screen
• IP-67 and NEMA 6 rated
• Rugged and scratch resistant Corning® Gorilla® Glass window
• Supplied with free Windows design software, to setup and customise the display. Compatible with Windows 7, 8.1 and 10.
• Download meter applications from the ever expanding online library
• Programmable with the USB interface
• Simple and easy panel mounting solution
• IP-67 12-way connection
• Wide operating voltage of 4V - 30V d.c.
• 0 - 40V d.c. measurement range
• 2 analogue inputs & 2 alarm outputs
• SPI and I²C
• 4-20mA version available (SGD 24-M-IP420)

The SGD 24-M-IP is a PanelPilot Compatible IP-67 graphics display with a 320 x 240 pixel (QVGA) colour display and USB programming interface. Using the PanelPilot software (available for Windows 7, 8.1 and 10), users are able to choose from an ever-increasing number of configurations which can then be customised to their needs. Colours, text labels, splash screen and input voltage scaling can all be customised by the user through the software and then uploaded to the SGD 24-M-IP through the USB connection. When setup is complete, the settings can be saved and then uploaded to the meter using the supplied USB cable. Panel or enclosure installation of the finished module is simple, using the 32mm nut and the IP67 connector supplied with the unit.
