• Measures 4 - 20mA current loops (nom. loop voltage 24vdc)
• 2 separate, isolated, channels
• Ideal for measuring Command and Position on the same Display
• Powered from SGD meter
• Simple mounting on back of SGD header
• Application download from PanelPilot website
• Works with any PanelPilot voltage configuration
• Operating voltage of 12V-30V d.c
• Does not need floating PSU with respect to current loops
• Each current loop channel is isolated from each other as well as the PanelPilot

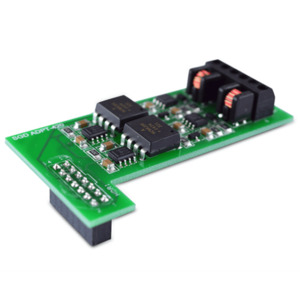

The add-on module interfaces directly with compatible PanelPilot M series displays. It features two isolated input channels and takes its power directly from the SGD meter. Current loop connection is via screw terminals. Please note: the SGD ADPT-420 does not include a PanelPilot M Series display.
