Lascar Electronics

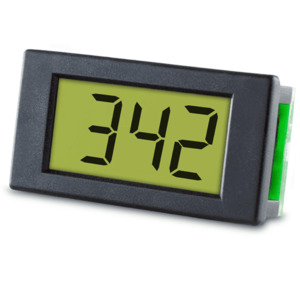

Lascar Electronics DPM 342 Digital Panel Meter, LCD Display, 3.5 Digits, 4-20mA, DPM Series
Part #70047188
MFG #DPM 342
Lascar Electronics
Lascar Electronics DPM 342 Digital Panel Meter, LCD Display, 3.5 Digits, 4-20mA, DPM Series
Part #70047188
MFG #DPM 342
£
£
- Description
- Attributes
- Documents
- Compact 4-20mA Loop Powered LCD Meter
- 11 Digit Height
- Programmable Decimal Points
- Low Volt Drop
- Loop Powered LED Backlighting
- Simple Screw Terminal Connections
- Wide Adjustment Range
The compact, 4-20mA loop powered panel meter features a 3½ digit LCD with 11mm (0.43″) digit height, LED backlighting and one-piece snap-in housing. Calibration is by two multi-turn potentiometers and connection to the current loop is via two screw terminals.
Brand:Â Lascar Electronics
Series:Â DPM Series
Current Rating:Â 20 mA
Dimensions:Â 40x20 mm
Display Digits:Â 3.5 Digits
Display Type:Â LCD
Operating Temperature Range: 32-122°F
Sample Rate:Â 3 samples/sec
Voltage Rating:Â 6 V
£
£
