Lascar Electronics

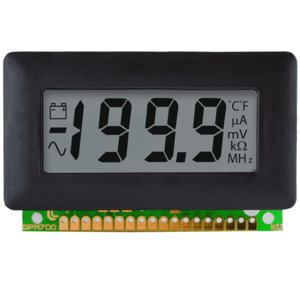

Lascar Electronics DPM 600S Digital Panel Meter, LCD, 3.5 Digits, 200mV, Full Scale, DPM Series
Part #70047195
Condition:New
MFG #DPM 600S
Lascar Electronics
Lascar Electronics DPM 600S Digital Panel Meter, LCD, 3.5 Digits, 200mV, Full Scale, DPM Series
Part #70047195
Condition:New
MFG #DPM 600S
- Description
- Attributes
- Documents
- 200mV LCD Voltmeter with Annunciators
- 12.7 Digit Height
- Logic Selectable Decimal Points
- Auto-Zero & Auto Polarity
- 200mV d.c Full Scale Reading
- User Adjustable Low Battery Indication
The single rail panel meter features a 3½ digit LCD with 12.5mm (0.5″) digit height and annunciators. With 200mV d.c. full scale reading, auto-zero and auto-polarity, this meter is connected via solder pads and can be fitted into a panel via the bezel, window and clips provided.
Brand: Lascar Electronics
Display Digits: 3.5 Digits
Display Type: LCD
Series: DPM Series
Current Rating: 0.5 mA
Dimensions: 64.5x34.5 mm
Operating Temperature Range: 32-122°F
Sample Rate: 3 samples/sec
Voltage Rating: 7 V
