Lascar Electronics

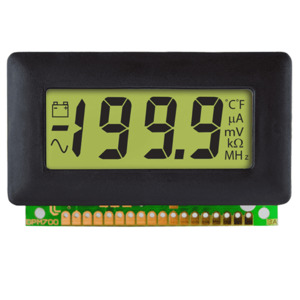

Lascar Electronics DPM 700S Panel Meter, LCD Display, 3.5 Digits, LED Backlighting, Bezel Mount
Part #70047197
Condition:New
MFG #DPM 700S
Lascar Electronics
Lascar Electronics DPM 700S Panel Meter, LCD Display, 3.5 Digits, LED Backlighting, Bezel Mount
Part #70047197
Condition:New
MFG #DPM 700S
- Description
- Attributes
- Documents
- 12.7mm (0.5“) Digit Height
- Logic Selectable Decimal Points
- Auto-zero
- Auto-polarity
- 200mV d.c. Full Scale Reading (F.S.R.)
- User Adjustable Low Battery Indication
- Single Rail Version (DPM 700S)
The single rail panel meter features a 3½ digit LCD with 12.5mm (0.5″) digit height, annunciators and LED backlighting. With 200mV d.c. full scale reading, auto-zero and auto-polarity, this meter is connected via solder pads and can be fitted into a panel via the bezel, window and clips provided.
Brand: Lascar Electronics
Display Digits: 3.5 Digits
Display Type: LCD
Current Rating: 0.5 mA
Operating Temperature Range: 32-122°F
Sample Rate: 3 samples/sec
Voltage Rating: 7 VDC
