• 8 mm (0.31") Digit Height
• 200mV d.c. Full Scale Reading
• 3.5 to 6.5V or 7.5 to 14.0V Operation
• Auto-zero and Auto-polarity
• Selectable Decimal Points
• Requires 32.5mm (1.28") Diameter Cut-out
• IP67 / NEMA 4X Protected

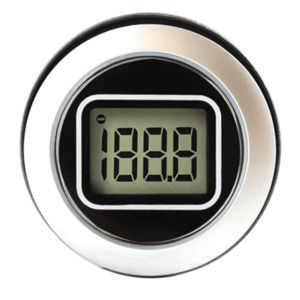

The EM32-1B isa3½ digit LCD voltmeter which is designed to be panel mounted in most low and medium volume applications. The meter features 8mm digit height, 3 decimal points, auto-polarity, auto-zero, 200mV full scale reading and a very low current consumption. This product is designed so no soldering is required. Connection is via screw terminals, and options are selected via jumper links. The module features a round metal bezel, requiring a 32.5mm (1.28") diameter cut-out. It is secured with the nut provided. Protection from the front to IP 67 / NEMA 4X standards is achieved by placing the rubber seal between the module and panel during assembly.
