• Frequency range: 2 kHz – 150 kHz
• Level: 0...25 Vrms cont
• Source impedance: 10 Ω ±3 Ω max. (±1 Ω typical)
• EUT voltage: 500 V AC (50/60 Hz), 700 V DC
• Max. EUT current: 16 A cont. AC/DC
• Voltage drop mains EUT: 13 V typical (16 A/50 Hz)
• Amplifier input: XLR-female
• Mains/EUT: 4 mm safety sockets (black/blue)
• High voltage test amplifier - EUT: 1.9 kV DC (10 sec)
• Dimensions (H x W x D): 15.7 x 48.2 x 54 cm
• Weight: 11.2 kg
• Temperature range: 5...40 °C

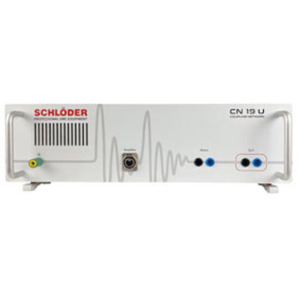

The coupling network CN 19 U is suitable for differential voltage tests according to IEC / EC 61000-4-19. It is designed for tests in the frequency range from 2 kHz to 150 kHz.
