• Frequency range: 2 kHz - 150 kHz
• Level: 0...10 Arms cont.
• Source impedance: 1 Ω ±0.3 Ω max. (±0.1 Ω typisch)
• Four-wire shunt: 0.1 Ω ±1 mΩ max.
• EUT voltage: 500 V AC (50/60 Hz), 700 V DC
• Amplifier input: XLR-female
• EUT current output: 4 mm safety sockets (black/blue)
• Shunt output: 4 mm 4 mm safety sockets (green)
• Power supply: external 24 V/1 A AC/DC-power supply unit
• High voltage test amplifier - current output: 1.9 kV DC (10 sec)

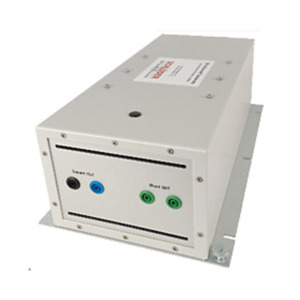

The current transformer CN 19 I is used to supplement tests according to the IEC / EC 61000-4-19 standard and is also suitable for a frequency range from 2 kHz to 150 kHz.
