SKS Hirschmann Test & Measurement PKI 10 A grau / grey Test Socket, Grey, 2mm Cross Hole, M4 Thread, 35A
Part #NS04 930103106
MFG #PKI 10 A grau / grey
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement PKI 10 A grau / grey Test Socket, Grey, 2mm Cross Hole, M4 Thread, 35A
Part #NS04 930103106
MFG #PKI 10 A grau / grey
£
£
Multiples of: 100
- Description
- Attributes
- Documents

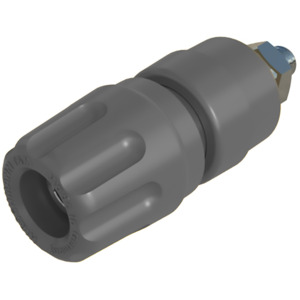

Pole terminal with claw edge and captive insulated head and insulated ring. 4 mm diameter nickel-plated brass threaded bolt with 2 mm diameter transverse hole. For insulated, non-rotating installation in equipment chassis and switchpanels with a wall thickness up to 2 mm.
Brand:Â SKS Hirschmann Test & Measurement
Type:Â Test Socket
Series:Â PKI Series
Alternate Product Number:Â 930103106
AC Voltage:Â 30 V
Color:Â Grey
Connection:Â M4 Thread
Current Rating:Â 35 A
DC Voltage:Â 60 V
Flammability Rating:Â V-2
Housing Material:Â PA
Material:Â Brass, Nickel Plated
Temperature Range: -25 to +100°C
Terminal Type:Â Binding Post
US SKU #:Â 10121765
Voltage Rating:Â 60 V
£
£
Multiples of: 100
