SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement PKN 10 B schwarz / black Test Socket, Black, 2.6mm Cross Hole, M6 Thread
Part #NS04 930117100
MFG #PKN 10 B schwarz / black
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement PKN 10 B schwarz / black Test Socket, Black, 2.6mm Cross Hole, M6 Thread
Part #NS04 930117100
MFG #PKN 10 B schwarz / black
£
£
Multiples of: 100
- Description
- Attributes
- Documents

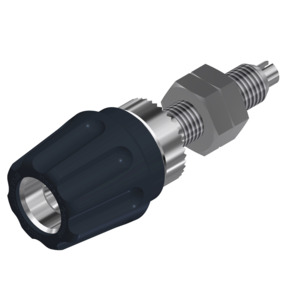

Pole terminal with claw edge and captive insulated head. 6 mm diameter nickel-plated brass threaded bolt with 2.6 mm diameter transverse hole. For non-rotating installation in equipment chassis and switchpanels.
Brand:Â SKS Hirschmann Test & Measurement
Type:Â Test Socket
Series:Â PKN Series
Alternate Product Number:Â 930117100
AC Voltage:Â 30 V
Color:Â Black
Connection:Â M6 Thread, Solder Connection
Current Rating:Â 63 A
DC Voltage:Â 60 V
Housing Material:Â PA
Material:Â Brass, Nickel Plated
Temperature Range: -25 to +100°C
Terminal Type:Â Binding Post
US SKU #:Â 10121781
Voltage Rating:Â 60 V
£
£
Multiples of: 100
