SKS Hirschmann Test & Measurement

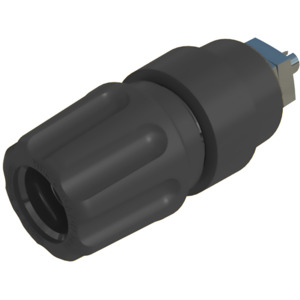

SKS Hirschmann Test & Measurement PKNI 10 B schwarz / black Test Socket, Black, 2.6mm Cross Hole, M6 Thread
Part #NS04 930136100
Condition:New
MFG #PKNI 10 B schwarz / black
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement PKNI 10 B schwarz / black Test Socket, Black, 2.6mm Cross Hole, M6 Thread
Part #NS04 930136100
Condition:New
MFG #PKNI 10 B schwarz / black
- Description
- Attributes
- Documents
Pole terminal with claw edge, captive insulated head and insulated ring. 6 mm diameter nickel-plated brass threaded bolt with 2.6 mm diameter transverse hole. For insulated non-rotating installation in equipment chassis and switch panels up to 3.5 mm wall thickness.
Brand: SKS Hirschmann Test & Measurement
Type: Test Socket
Series: PKNI Series
Alternate Product Number: 930136100
AC Voltage: 30 V
Color: Black
Connection: M6 Thread, Solder Connection
Current Rating: 63 A
DC Voltage: 60 V
Flammability Rating: V-2
Housing Material: PA
Material: Brass, Nickel Plated
Temperature Range: -25 to +100°C
Terminal Type: Binding Post
US SKU #: 10121785
Voltage Rating: 60 V
