SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement BIL 30 gelb / yellow Test Socket, Yellow, Panel Mount, M6 Thread, 32A
Part #NS04 930166103
MFG #BIL 30 gelb / yellow
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement BIL 30 gelb / yellow Test Socket, Yellow, Panel Mount, M6 Thread, 32A
Part #NS04 930166103
MFG #BIL 30 gelb / yellow
£
£
Multiples of: 200
- Description
- Attributes
- Documents

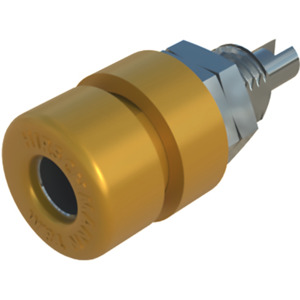

Socket with insulated head and ring for installation in equipment chassis and switchpanels up to 4 mm wall thickness. 4 mm diameter gold-plated zinc die-cast socket, with solder connection.
Brand:Â SKS Hirschmann Test & Measurement
Type:Â Test Socket
Series:Â BIL Series
Alternate Product Number:Â 930166103
AC Voltage:Â 30 V
Color:Â Yellow
Connection:Â M6 Thread, Solder Connection
Current Rating:Â 32 A
DC Voltage:Â 60 V
Flammability Rating:Â V-2
Housing Material:Â PA
Mounting Style:Â Panel Mount
Socket Size:Â 4 mm
Temperature Range: -25 to +85°C
Terminal Type:Â Binding Post
US SKU #:Â 10123202
Voltage Rating:Â 60 V
£
£
