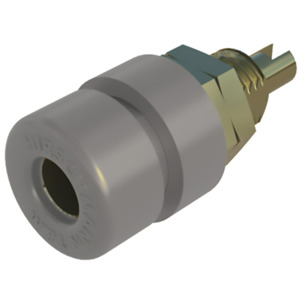

SKS Hirschmann Test & Measurement BIL 30 Au grau / grey Test Socket, Gray, Gold Plated, M6 Thread, 32A
Part #NS04 930166706
Condition:New
MFG #BIL 30 Au grau / grey
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement BIL 30 Au grau / grey Test Socket, Gray, Gold Plated, M6 Thread, 32A
Part #NS04 930166706
Condition:New
MFG #BIL 30 Au grau / grey
- Description
- Attributes
- Documents
Socket with insulated head and ring for installation in equipment chassis and switchpanels up to 4 mm wall thickness. 4 mm diameter gold-plated zinc die-cast socket, with solder connection.
Brand: SKS Hirschmann Test & Measurement
Type: Test Socket
Series: BIL Series
Alternate Product Number: 930166706
AC Voltage: 30 V
Color: Gray
Connection: M6 Thread, Solder Connection
Current Rating: 32 A
DC Voltage: 60 V
Flammability Rating: V-2
Housing Material: PA
Socket Size: 4 mm
Temperature Range: -25 to +85°C
Terminal Type: Binding Post
US SKU #: 10123214
Voltage Rating: 60 V
