SKS Hirschmann Test & Measurement

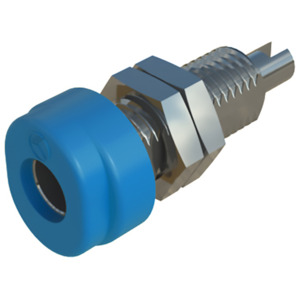

SKS Hirschmann Test & Measurement BUG 10 blau / blue Test Socket, Blue, Panel Mount, M6 Thread, 32A
Part #NS04 930175102
MFG #BUG 10 blau / blue
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement BUG 10 blau / blue Test Socket, Blue, Panel Mount, M6 Thread, 32A
Part #NS04 930175102
MFG #BUG 10 blau / blue
£
£
Multiples of: 200
- Description
- Attributes
- Documents
Socket with oval insulated head, Ø 4 mm tin-plated zinc die-cast socket, with M6 thread and solder connection. For Installation in equipment chassis and switch panels till 8mm wall thickness.
Brand:Â SKS Hirschmann Test & Measurement
Type:Â Test Socket
Series:Â BUG Series
Alternate Product Number:Â 930175102
AC Voltage:Â 30 V
Color:Â Blue
Connection:Â M6 Thread, Solder Connection
Current Rating:Â 16 A
DC Voltage:Â 60 V
Flammability Rating:Â V-2
Housing Material:Â PA
Mounting Style:Â Panel Mount
Temperature Range: -25 to +85°C
Terminal Type:Â Binding Post
US SKU #:Â 10123219
Voltage Rating:Â 60 V
£
£
Multiples of: 200
