SKS Hirschmann Test & Measurement BUG 10 blau / blue Au Test Socket, Blue, Gold Plated, M6 Thread, 32A
Part #NS04 930175702
MFG #BUG 10 blau / blue Au
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement BUG 10 blau / blue Au Test Socket, Blue, Gold Plated, M6 Thread, 32A
Part #NS04 930175702
MFG #BUG 10 blau / blue Au
- Description
- Attributes
- Documents

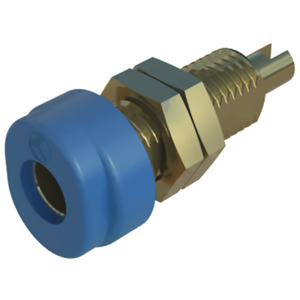

Socket with oval insulated head, Ø 4 mm gold-plated zinc die-cast socket, with M6 thread and solder connection. For installation in equipment chassis and switch panels till 8mm wall thickness.
Brand: SKS Hirschmann Test & Measurement
Type: Test Socket
Series: BUG Series
Alternate Product Number: 930175702
AC Voltage: 30 V
Color: Blue
Connection: M6 Thread, Solder Connection
Current Rating: 16 A
DC Voltage: 60 V
Flammability Rating: V-2
Housing Material: PA
Temperature Range: -25 to +85°C
Terminal Type: Binding Post
US SKU #: 10123225
Voltage Rating: 60 V
