SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement MPK 1 rot / red Test Socket, Red, 2mm, Solder Terminal, PK Series
Part #NS04 930268101
MFG #MPK 1 rot / red
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement MPK 1 rot / red Test Socket, Red, 2mm, Solder Terminal, PK Series
Part #NS04 930268101
MFG #MPK 1 rot / red
£
£
Multiples of: 100
- Description
- Attributes
- Documents

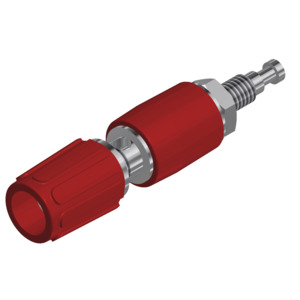

2 mm diameter miniature pole clamp with transverse hole, insulated, goldplated copper beryllium contact spring, tin-plated brass threaded bolt with solder connection. Suitable for installation in equipment chassis and switch panels up to a maximum wall thickness of 3.5 mm.
Brand:Â SKS Hirschmann Test & Measurement
Type:Â Test Socket
Series:Â PK Series
Alternate Product Number:Â 930268101
AC Voltage:Â 30 V
Color:Â Red
Connection:Â Solder
Current Rating:Â 6 A
DC Voltage:Â 60 V
Housing Material:Â PA
Material:Â Brass, Gold Plated
Socket Size:Â 2
Temperature Range: -20 to +60°C
Terminal Type:Â Solder Terminal
US SKU #:Â 10121811
Voltage Rating:Â 60 V
£
£
Multiples of: 100
