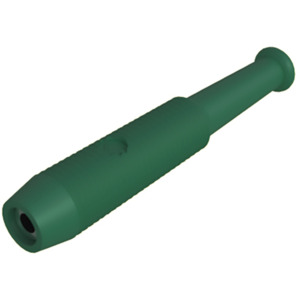

SKS Hirschmann Test & Measurement MKU 1 grun / green Test Socket, Green, Solder Terminal, MKU Series
Part #NS04 930320104
MFG #MKU 1 grun / green
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement MKU 1 grun / green Test Socket, Green, Solder Terminal, MKU Series
Part #NS04 930320104
MFG #MKU 1 grun / green
£
£
Multiples of: 100
- Description
- Attributes
- Documents
2 mm diameter miniature coupling, insulated, tin-plated copper beryllium contact spring with solder connection. Flexible, shatter-proof insulated sleeve. For making up connecting leads with a maximum external diameter of 2 mm.
Brand:Â SKS Hirschmann Test & Measurement
Type:Â Test Socket
Series:Â MKU Series
Alternate Product Number:Â 930320104
AC Voltage:Â 30 V
Color:Â Green
Connection:Â Solder Connection
Current Rating:Â 6 A
DC Voltage:Â 60 V
Housing Material:Â PVC-P
Material:Â Copper, Beryllium
Socket Size:Â 2 mm
Temperature Range: -20 to +60°C
Terminal Type:Â Solder Terminal
US SKU #:Â 10121824
Voltage Rating:Â 60 V
£
£
Multiples of: 100
