SKS Hirschmann Test & Measurement

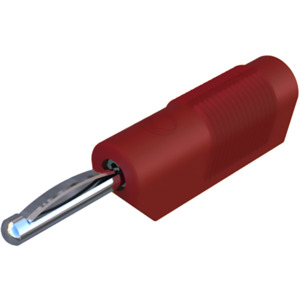

SKS Hirschmann Test & Measurement VSB 20 rot / red Banana Plug, Green, 4mm, Stackable, Screw, 30A
Part #NS04 930435101
Condition:New
MFG #VSB 20 rot / red
- Description
- Attributes
- Documents
Fully mating connector with cable gland and 4 mm socket for onward connection capability. Screw connection up to maximum cable cross-section of 2.5 mm² and external diameter of 4 mm. Nickel-plated brass contact material.
Brand: SKS Hirschmann Test & Measurement
Type: Banana Plug
Series: VSB Series
Alternate Product Number: 930435101
AC Voltage: 30 V
Color: Red
Connection: Screw Terminal
Current Rating: 30 A
DC Voltage: 60 V
Housing Material: PP
Material: Brass, Nickel Plated
Pin Size: 4 mm
Style: Stackable
Temperature Range: -25 to +70°C
Terminal Type: Screw
US SKU #: 10117639
Voltage Rating: 60 V
